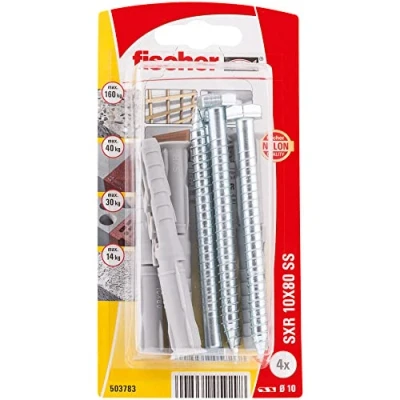

FISCHER 503783 Blister SXR 10x80 SS K NV

Main advantages: SXR anchor with galvanized steel countersunk screw is a certified fixation for masonry and concrete in multiple non-structural fixings, with fire resistance class F90. How to use: make hole with drill bit of 10 mm in diameter, clean the hole, insert the anchor using a hammer, tighten the screw; the plug and screw cross the material to be fixed. Applications: metal structures, stone placed, clotheslines, awnings, parabolics, railings, brackets, hand ladders, cable trays, escalators, metal carpentry, wooden constructions. Product information: 80mm is the total length of the dowel, 50mm is the part of the dowel that would have to traverse the wall at least and 30mm would be the maximum thickness of the element to be fixed. Contents: 1 x 10x80 SXR Blister with 4 units, pre-assembled, fischer., Weight: 0.0220462262 pounds, Manufacturer: fischer
