fischer 77586 Ankle

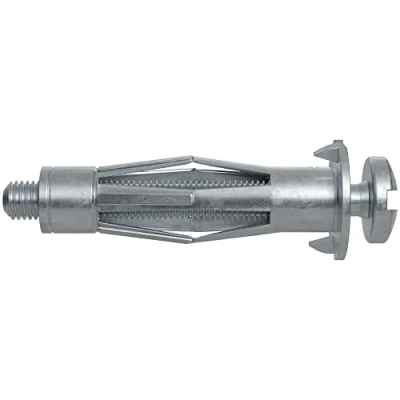

The HM dowel is a metal cavity fixing with metric screws for all panel building materials with a wall thickness of 3 to 50 mm. The dowel is suitable for hanging up and is attached with spreader pliers. When mounting with the clamp, the dowel is plated against the plate. The expansion arms fold out and support on the back of the panel. The installation is also possible with a screwdriver or an electric screwdriver. The Fischer HM cavity attachment is suitable for attaching lighting, panels or light shelves indoors. Applications: frames, curtain rods, towel rails, light wall shelves, lamps, toilet cabinets Material: plasterboard and plasterboard, Hourdi, lightweight fibreboard, chipboard, plywood The HM cavity dowel made of metal is suitable for standing mounting. The dowel to be used depends on the plate thickness to allow optimal expansion into the cavities. When installing, the expansion branches open and press on the back of the panel. The HM can be installed with spreader pliers. When installing with an electric screwdriver or screwdriver, the pre-assembled screw must be removed beforehand. When screwing and expanding the dowel, the piece to be fixed or another piece with a maximum thickness of 6 mm is used simultaneously as a rotary lock., Weight: 0.06834330122 Pounds, Manufacturer: fischer
