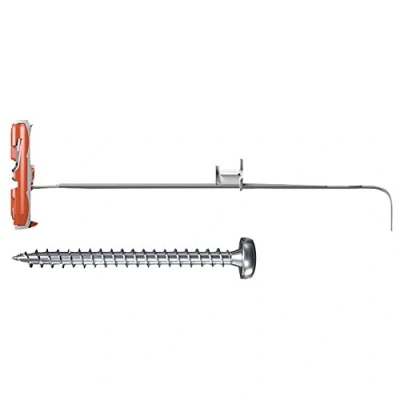

fischer DuoTec 10 S PH, high quality toggle plug with panhead screw, 2 component for fastenings in plasterboard, gypsum fibreboard, wood, steel & plastic panels, etc., 25 plugs screws

Fischer Group Duo Tec 10 S Ph Screw And Wall Plug 25 Units. The nylon toggle fischer DUOTEC for high tensile and transverse loads through 2 components. Easy installation with small drill hole diameters of 10 mm and short toggle element, even in narrow and insulated cavities. Easy pre-installation, the plug does not fall into the drill hole, even without a screw. No cutting, and thus no weakening of the gypsum plasterboard. The toggle element automatically folds behind the panel and gives it its strength. As a result of the flexible stainless steel screw seat, the gravity toggle can be used with wood and chipboard screws or metric hooks and threaded rods with lock nuts. If it hits something in the drill hole in solid building materials, it functions like an Expansion plug. The panhead screw provided is optimally matched to the Gravity toggle fischer DUOTEC. This guarantees the perfect hold.Advantages:- Flexible screw mount allows for the use of screws and hooks with different thread shapes.- Glass fibre-reinforced plastics and a metal skeleton insert (fischer DUOTEC 12) allow the toggle to handle heavy tensile and transverse loads in all panel building materials.- Soft grey nylon contact surface distributes the load over the panel surface, thereby minimising weakening of the supporting building material.- Standard drill hole diameters and short tilting element for easy installation in narrow cavities, including cavities with insulation.- White flush sleeve with snap function allows the plug to be pre-installed quickly and securely in the drill hole.- With scale on the grip strap (fischer DUOTEC 12) for determining the required screw length (scale value + 20 mm).Features:- Combination of two material components for more performance.- With corresponding panhead screw.- Flush sleeve strengthens the drill hole and allows considerably higher transverse loads.- Curved handle allows obstacles to be identified before installation.Specifications:- Drill diameter: 10[mm]- Min. panel thickness: 12[mm]- Max. panel thickness: 55[mm]- Min. cavity depth: 40[mm]- Screw diameter: 5[mm]- Screw length: 60[mm]- Min. drill hole depth: 65[mm]- Anchor length: 50[mm]- Max. fixture thickness: 27[mm]- Amount: 25[Unit(s)]. tradeinn Bricoinn

Quick & easy installation: Intelligent cavity plug to attach heavy loads to all prefabricated building materials – the white flush sleeve with its locking mechanism reinforces the borehole and enables a fast pre-mounting of the plug whilst preventing it from falling into the borehole even without a screw. High load capacity: Thanks to its short toggle element, the toggle-plug is suitable for narrow and insulated cavities and ensures a secure hold of high tensile and lateral loads in all prefabricated building materials – the 2-component plug automatically opens behind the plate and enables the soft, grey nylon support side to distribute the load on the panel surface and minimise the weakening of the load-bearing building material. Versatility: In solid construction materials, the powerful plug works like a spreading plug with its flexible steel screw holder that allows the cavity wall plug to be used with screws and hooks of various thread shapes. Areas of application: The powerful plug is suitable for numerous building materials such as plasterboard and fiberboard, wood, steel & plastic panels, hollow concrete stones and solid materials as well as for attaching heavy objects such as kitchen wall cabinets, living room cabinets, shelves, wardrobes, handles, picture frames, mirrors, lamps, and hanging baskets. Scope of delivery: 25 x DuoTec 10 S PH & 25 x Panhead screw 5 x 70 (item no. 539025) by fischer.
