fischer DuoTec Pladur Cleats for TV Stand 10 mm, Pack of

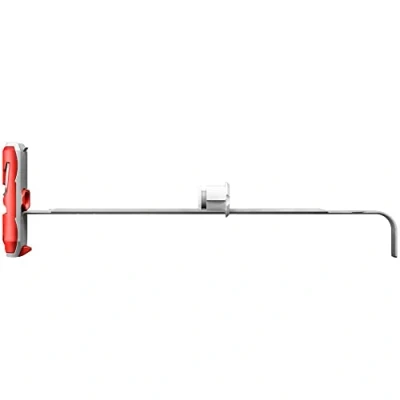

Fischer Group N10 Duotec 541888 Wall Plug 10 Units. The unique operation and lug geometry of the fischer DuoTec allow very heavy load bearing for tipping lugs. In multiple bindings, this reduces the number of bindings and maximizes security. As a member of the DUO line, the DuoTec is made up of two plastic components. The red, hard component of the cleat sleeve allows for even load distribution, and the gray, soft component prevents damage to the plate surface during attachment, thus reducing the load. In plate applications, behind which there is a gap, the DuoTec is used as an overturning block. In solid materials, the plug can also be used as an expansion plug.Advantages:- The smooth continuous cutting edge enabels high-precision cuts without edge chipping.- Universal use in tiles.- Suitable for wet and dry cutting.- High tool and user safety during cutting of materials according to oApplication and Permission:Applications:- Hanging kitchen cabinets- Living room cabinets- Shelves- Wardrove- Railing- Picture- Mirrors- Lamps- Heavy Hanging PotsConstruction materials:Apt to:- Plasterboard- Fiber-reinforced gypsum board- Wood panels, such as prestressed wood, fibreboard, and plywood- Steel plates- Plastic boards- Hollow concrete blocksFunctionality:- The fischer DuoTec is suitable for pre-assembly.- Simple mounting with the help of conventional 10 or 12 mm drill bits.- Thanks to the short swivel element, it is also ideal for narrow gaps insulated also with mineral wool. Observe the length of the tilting element!- In solid materials, such as p. ex. concrete or wood, works as an expansion plug. Attention, not with metric screws!- The flexible screw housing allows the use of wood plates, suspension plates, and metric screws and brackets.Specifications:- Hole diameter d 0: - [mm]- Min. Panel thickness d p: - [mm]- Max. panel thickness d p: - [mm]- Min. Cavity depth to: - [mm]- Screw diameter d s: - [mm]- Screw length l s: - [mm]- Min. Hole depth : h 1: - [mm]- Min length screw : l s: - [mm]- Anchor length l: - [mm]- Max. thickness of fixed elements: t fix: - [mm]. tradeinn Bricoinn

Main advantages: in hollow materials it can be used with both wood screws and metric thread screws and in solid materials, such as concrete or wood, it works as an expansion plug with chipboard screws. How to use: first drill the wall with a drill. Then we can measure with the flange of the dowel the drilling depth. Then we insert the dowel into the wall in the direction of the arrow marked on the plug. By pulling the flange we narrow the white plastic ring towards the wall to ensure maximum hold. Cut the flange, with a simple twist of the wrist. Present the object to be fixed (installation through) or directly insert the corresponding screw (flush installation). Both wood thread and metric thread screws can be used. Applications: With fischer dowels we can install splits, air conditioners, TV stands, lamps and ceiling fans. You can also install radiators, floating furniture for kitchens and bathrooms, extractors or hoods suspended in plasterboard or PLADUR walls and even water or electrical ducts in vaults. 2K technology: It is made of nylon and fibreglass ensuring a greater load. Box contents: the bag contains 10 DuoTec wall plugs made of plasterboard.
