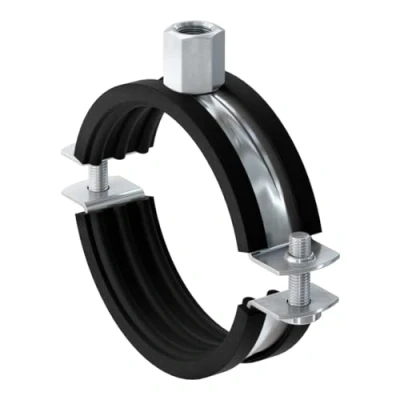

Fischer FRS Pipe Clamp 25 30 M8/M10

Sound insulation insert. Two screws allow for ideal adaptation to the outer pipe diameter. Loss protection of screw. Fire protection test R120. The fire test report guarantees independently tested functional safety. The two screws allow an easy adjustment to suit the outer pipe diameter. The combination connecting nut with thread M8 / M10 enables optimised mounting choices. The sound insulation insert offers noise protection and prevents contact corrosion. The screw's safety feature ensures trouble-free installation. Material: steel DC01 (material no. 1.0330) acc. to DIN EN 10130 Zinc plating: electro zinc plated Connecting nut: resistance welded, M8 / M10, SW 13 Locking screw: flat head screw with combination recessed head Material sound insulation insert: EPDM; chlorine-free; silicone-free Sound insulation: for DIN 4109 Temperature range: -40 °C to +100 °C Hardness: 55 ± 5° Shore A Fire behaviour: DIN 4102: Class B2 Secure fixing for pipes with threaded rods or stud screws (also when there are fire protection requirements) ETA-21/0253 GS 3.2/14-175-2 FEB/FS-75/13 - 2, Manufacturer: FISCHER
