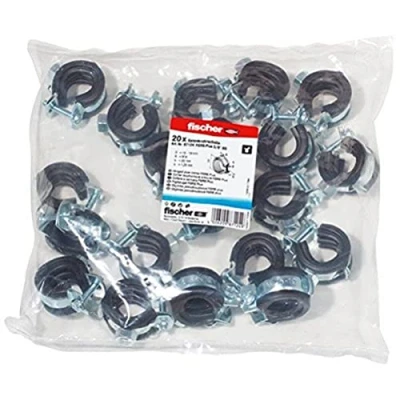

Fischer Joint Pipe Chhelle FGRS Plus 3/8 Inch BG/Samoyed 87124

The one-piece premium hinged pipe clamp with rapid-locking mechanism. Rapid-locking mechanism. Sound insulation insert. Connecting nut with thread M8. The rapid-locking mechanism allows a fast and time-saving installation. The tight fit of the sound insulation insert prevents it from falling out when inserting the pipe. The safety latch fastening guarantees pipe installation without the clamp springing open. The combination connecting nut with M8/M10 thread on the FGRS Plus M8/M10 allows optimised mounting choices. The screw's combination cross-drive thread allows flexibility during the installation process. The compact construction of the pipe clamp enables a simple post-installation insulation. Material: steel DC01 (material no. 1.0330) acc. to DIN EN 10130 Zinc plating: electro zinc-plated, 5–9 µm Connecting nut: resistance welded, SW 13 Locking screw: flat head screw with combination recessed head Material sound insulation insert: SBR/EPDM; chlorine-free; silicone-free Sound insulation: for DIN 4109 Temperature range: -40 °C to +100 °C Hardness: 55 ± 5° ShoreA Fire behaviour: DIN 4102: Class B2 Time-saving fixing for pipes up to Ø2“ using threaded rods or stud screws, Weight: 1.91581705678 pounds, Manufacturer: Fischer
