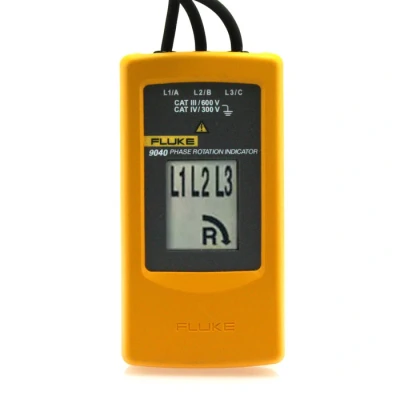

Fluke 9040 Phase Rotation Indicator

ManoMano

Fluke: 9040 Phase Rotation Indicator The 9040 is effective for measuring phase rotation in all areas where three phase supplies are used to feed motors, drives and electrical systems. The 9040 is a rotary field indicator and can provide clear indication of the 3 phase via an LCD display and the phase rotation direction to determine correct connections. It allows rapid determination of phase sequence and has a voltage (up to 700 V) and frequency range suitable for commercial and industrial applications. The included test probes have a variable clamping range for safe contact, also in industrial sockets. Specification: Voltage range: 40-700 V Frequency range: 15-400 Hz Operating timer: Continuous Environmental Specifications Operating temperature: 0 C to 40 C Dust/water resistance: IP 40 Safety Specifications Electrical Safety: EN 61010, EN 61557-7 Over voltage category: CAT III, 600 V, CAT IV, 300V MPN: 2435061 EAN: 0095969291378 9040 Phase Rotation Indicator Attributes: Depth: 27mm

Zoro Tools

The 9040 is effective for measuring phase rotation in all areas where three phase supplies are used to feed motors, drives and electrical systems. The 9040 is a rotary field indicator and can provide clear indication of the 3 phase via an LCD display and the phase rotation direction to determine correct connections. It allows rapid determination of phase sequence and has a voltage (up to 700 V) and frequency range suitable for commercial and industrial applications. The included test probes have a variable clamping range for safe contact, also in industrial sockets. Specification: Voltage range: 40-700 V Frequency range: 15-400 Hz Operating timer: Continuous Environmental Specifications Operating temperature: 0 C to 40 C Dust/water resistance: IP 40 Safety Specifications Electrical Safety: EN 61010, EN 61557-7 Over voltage category: CAT III, 600 V, CAT IV, 300V

Amazon

Effective for measuring phase rotation in all areas where three phase supplies are used to feed motors, drives and electrical systems. Provide clear indication of the 3 phase via an LCD display and the phase rotation direction to determine correct connections It allows rapid determination of phase sequence and has a voltage (up to 700 V) and frequency range suitable for commercial and industrial applications. The included test probes have a variable clamping range for safe contact, also in industrial sockets. No battery required.
