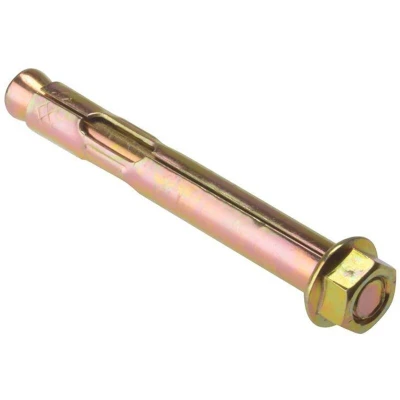

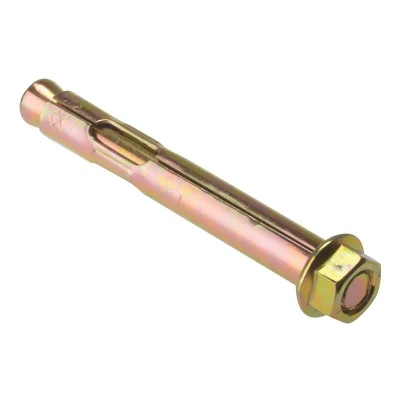

Forgefix Sleeve Anchor Fixing Hex Nut M12 x 75mm Bag 5 FORSA1275G

General description These Forgefix Sleeve Anchors are designed for through fixing, providing ease of use and speed of installation. Their sleeve wedge cones ensure maximum expansion even in shallow anchoring depths, while the reduced outside sleeve diameter compared to the thread size allows for smaller hole sizes, reducing stress in base materials. The anchors are Zinc Yellow Passivated, enhancing corrosion resistance and offering easier fixture removal or repositioning due to the bolt remaining in the shield. Commonly referred to as 'Projection Bolt' sleeve anchors, they are widely used for fixing balustrades, handrails, racking, and securing machinery, among other applications. Technical specifications Product Type: Sleeve Anchor Fixing Hex Nut Size: M12 x 75mm Pack Quantity: 5 Material: Zinc Yellow Passivated Other information

Expansion Anchor Masonry Fixing. Finish: Zinc Yellow Passivated. Also Known As 'Projection Bolt' Sleeve Anchor. Through Fixing For Ease And Speed Of Installation. Sleeve Wedge Cones Designed To Give Maximum Expansion. Reduced Outside Sleeve Diameter Compared To Thread Size Offersreduced Stress In Base Materials. Offers Easier Fixture Removal Or Re-Positioning Due To Bolt Part Remaining In The Shield. Widely Used For Fixing Balustrades Handrails Racking Roller Shutters Window Grills And Much More. Suitable For Most Masonry Substrates Including Concrete And Brickwork.socket Size Guide: M6 - 10Mm M8 - 15Mm M10 - 17Mm M12 - 19Mm M16 - 24Mm.PTDFORDIR5SA1275
