FPS6X88MTG PANDUIT Printers Printer Accessory/Component

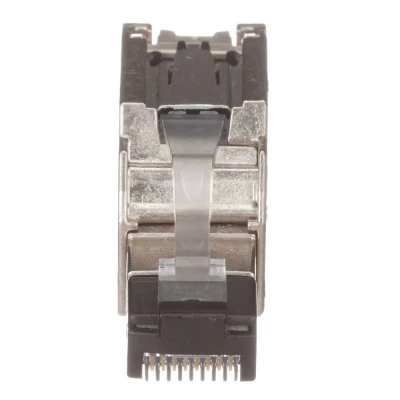

Panduit Tx6a Ftp Connector 6a. The Cat 6A shielded modular plug terminates 4-pair, 22-26 AWG, 100 ohm, shielded twisted pair cable and is backwards compatible with Cat 6 and 5e.The plug utilizes TG style technology to optimize performance by maintaining cable pair geometry while eliminating conductor untwist.This plug simplifies installation of common devices such as cameras and wireless access points.Specifications:- Product Type:Shielded Field Term Plug.- Performance Level:Category 6A.- Connector Type:Field Terminable Plug.- Body Material:ABS.- Contact Material:Phosphor Bronze.- Number of Plugs:1.- Wiring Scheme:T568A/T568B.- Overall Length (In.):1.83.- Overall Length (mm):46.4.- Shield Type:Shielded (STP).- Overall Width (In.):0.54.- Overall Width (mm):13.6.- Overall Height (In.):0.71.- Overall Height (mm):18.- Maximum Operating Temperature (°C):85.- Maximum Operating Temperature (°F):185.- Minimum Operating Temperature (°C):-40.- Minimum Operating Temperature (°F):-40.- Compatible Wire Gauge (AWG):22-26.- Standards Met:NA.- IP Rating:NA.- NEMA Rating:NA.- Sub Brand:Pan-Net®. tradeinn Techinn

RJ45 CONNECTOR, PLUG, 8P8C, 1PORT, CABLE, MODULAR CONNECTOR TYPE:RJ45 PLUG, PORT CONFIGURATION:1 X 1 (PORT), NO. OF POSITIONS / LOADED CONTACTS (PER PORT):8P8C, LAN CATEGORY:CAT6A, IP RATING:IP20, CONNECTOR MOUNTING:CABLE MOUNT ROHS COMPLIANT: YES
