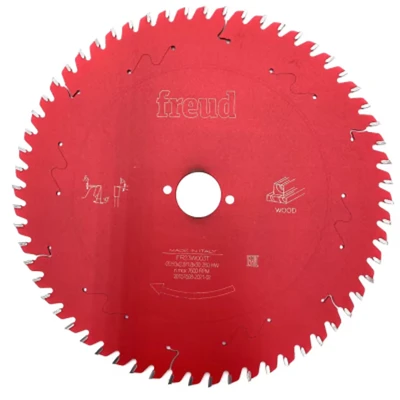

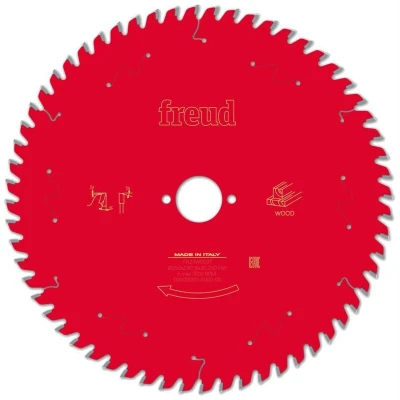

FREUD FRE00692 Blade for Ø250 2.8/1.8 AL30 Z60 BA 10 Portable Circular Saw F03FS09776 FR23W003T

The Freud F03FS09776 Portable Circular Saw Blade is expertly designed for the precision cutting of wood and wood-based materials using circular table saws. With a diameter of 250 mm, this universal blade excels at making both ripping and cross-cuts in hardwoods, softwoods, and various wood materials.

Premium Materials and Technology

Equipped with super micro grain carbide tips that incorporate titanium-cobalt-carbide alloys (TiCo), this saw blade guarantees maximum sharpness, strength, and durability. These specially produced carbide tips are engineered by Freud to provide flawless cutting results while boasting an impressive service life. The advanced PermaShield non-stick coating further enhances performance by reducing heat, corrosion, and resin build-up, ensuring seamless operation and consistent results.

Innovative Design Features

The Freud F03FS09776 blade features several innovative design elements that contribute to its efficacy and longevity:

- Laser-Cut Expansion Slots: Engineered to prevent blade warp, these slots also ensure precision tensioning for enhanced blade flatness.

- Anti-Vibration Slots: Designed to enable smooth running, these slots significantly reduce noise during operation.

- Advanced Tri-Metal Brazing: This feature allows the carbide tips to withstand extreme impacts, ensuring stability and durability even in demanding cutting conditions.

- Precision Manufacturing: Each saw blade is individually balanced for the highest precision. The ring-shaped imprint on the main blade attests to a complex pre-tensioning process, further enhancing cutting performance.

Technical Specifications

The Freud F03FS09776 boasts a variety of technical specifications that underscore its quality and design:

- Blade Diameter: 250 mm

- Bore Diameter: 30 mm

- Cutting Width (Kerf): 2.8 mm

- Blade Thickness: 1.8 mm

- Number of Teeth: 60

- Tooth Form: Alternate tooth

- Angle of Rake: 10 degrees

- Pin Holes: 2/6/42

Conclusion

The Freud F03FS09776 Portable Circular Saw Blade is a top-tier choice for woodworkers seeking efficiency, precision, and durability. With its advanced materials, innovative design, and precise engineering, this blade is ideal for both professional and home workshops, delivering reliable performance across a range of wood-cutting applications. Whether you are ripping boards or making cross-cut joints, this blade ensures high-quality results every time. Experience the quality of Freud, the world's largest manufacturer of high-quality circular saw blades, with this exceptional product.
