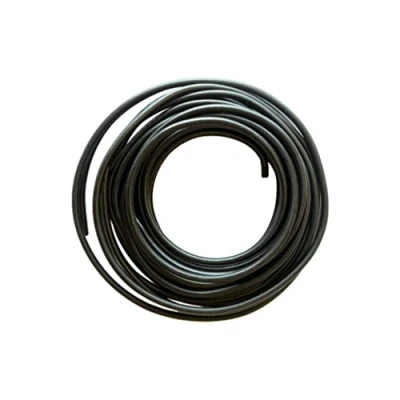

Gallagher Double Insulated Soft Lead Out Cable 1.6 mm x 10 m 100 Ohm/km

Gallagher earth/lead-out cable is a single-core, double-insulated grounding cable designed to connect the energiser to the fence and to earth stakes. It features a galvanised steel core with a 1.6 mm diameter and a flexible outer coating, making it suitable for above and below ground use. The cable includes metre markings for easy measurement, so you can cut it to the required length, and it can be installed inside plastic conduit for added protection. Available lengths include 10 m, 25 m, and 50 m, with 1.6 mm cores used for shorter runs.

For underground or gate connections, this ground cable is designed to support reliable high-voltage fencing and earth connections. It is specified for short distances up to 30 metres with the 1.6 mm size, while longer runs may require a 2.5 mm version, especially for higher pulse energy energisers.

Features

• Single-core earthing cable
• Connects energiser to fence and earth stakes
• Suitable for underground connections at gates
• Flexible outer coating with metre markings
• Galvanised steel wire core
• Length options: 10 m, 25 m, 50 m

Usage

1. For distances under 30 metres, use the 1.6 mm earth cable.
2. For distances over 30 metres, use the 2.5 mm ground cable.
3. For energisers with high pulse energy, a 2.5 mm version is recommended.
4. The metre markings on the cable make setup easy; cut to the required length.
5. For additional protection, install the cable inside plastic conduit.
6. Ground cable is used to connect the energiser to the fence and the earth rods.
7. The cable is also used to make underground connections, for example under gates or openings.
