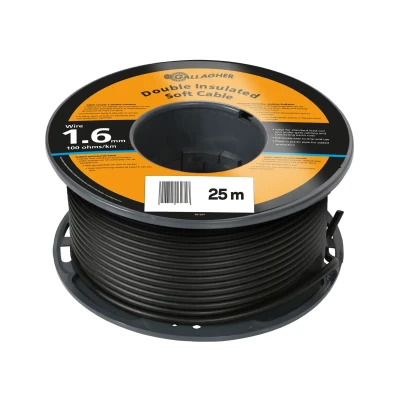

Gallagher Double insulated Soft Lead Out Cable 1,6 mm x 25 m 100 Ohm/km

Electricfence-online.co.uk

Gallagher Earth Cable/Supply Cable - 1.6 mm (25 m)  To ensure your electric fence works correctly, you need earth cable to connect the energiser to both the fence and the earth stakes. Earth cables are also used for underground connections, for example at gates and passages. * For distances under 30 metres, use 1.6 mm earth cable * For distances over 30 metres, use 2.5 mm underground cable The metre markings on the cable are particularly useful, there’s no need to carry a folding rule. Simply cut the underground cable to the required length! * Necessary for connecting the energisers to the fence and earth stakes * For making underground connections at gates and passages * Available in different lengths * With metre marking * Length: 25 m on a roll * Galvanised steel wire * Diameter of wire: 1.6 mm * Diameter inner insulation: 2,9 mm +/- 0,2 mm * Diameter outer insulation: 5.8 mm +/- 0.2 mm

Gallagher

Ground cable is used to connect the energiser to the fence and the earth rods. The cable is also used to make underground fence connections, for instance, under gates or openings. This 1.6 mm ground cable should be used for distances less than 30 metres*. The handy metre marks on the cable, makes set up easy as the measuring is done for you. *For distances over 30 metres then 2.5 mm ground cable is recommended.
