Lead Out Cable 1,6 mm 50 m 100 Ohm/km Electric Fence Accessories

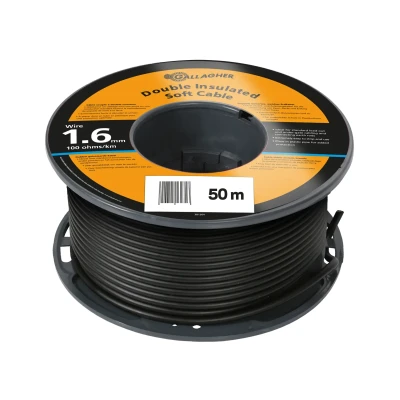

Gallagher Electric Fence Earth/Lead-Out Cable – 1.6 mm – Single Core – 50 m An earth cable is essential for connecting your energiser to both the fence and the earth stakes. It is also suitable for creating underground connections, for example at gates and passageways. This high-voltage cable features a double-insulated, 1.6 mm galvanised steel core with low resistance, ensuring efficient power transfer. It is ideal for use as a lead-out, fence, or earth cable and provides a reliable connection both above and below ground. For the best performance * Use 1.6 mm cable for distances up to 30 metres * Use 2.5 mm cable for distances over 30 metres * For energisers with high pulse energy (high Joule output), we recommend the 2.5 mm version The practical metre markings along the cable make installation easy, there’s no need to carry a folding rule. Simply cut the cable to the required length. For added protection, we recommend installing the cable inside plastic conduit. Features * Single-core earthing/lead-out cable * Connects the energiser to the fence and earth stakes * Suitable for underground connections at gates and crossings * Flexible outer coating with metre markings for easy measuring and stripping * Galvanised steel wire core * Available in multiple lengths Specifications * Core diameter: 1.6 mm * Inner insulation diameter: 2.9 mm ± 0.2 mm * Outer insulation diameter: 5.8 mm ± 0.2 mm * Length: 50 m (also available in 10 m and 25 m)

Ground cable is used to connect the energiser to the fence and the earth rods. The cable is also used to make underground fence connections, for instance, under gates or openings. This 1.6 mm ground cable should be used for distances less than 30 metres*. The handy metre marks on the cable, makes set up easy as the measuring is done for you. *For distances over 30 metres then 2.5 mm ground cable is recommended.
