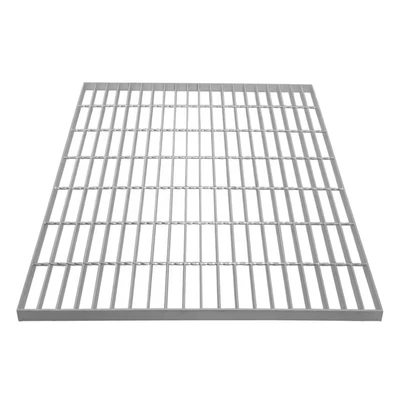

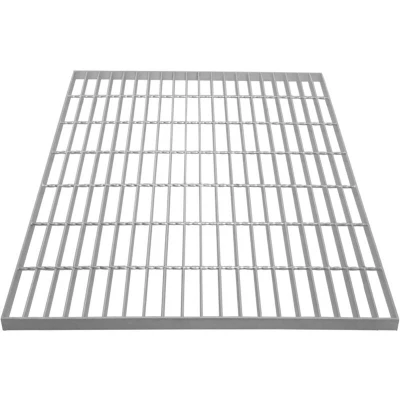

Galvanised Grating Floor Forge Walkway Mesh Panel Grid Drainage Gutter Vent Heavy Duty Weatherproof Steel Zinc Coated 700mm x 30mm 4mm Metal Thickness 490kg Load Capacity

Enhance the safety and functionality of your workspace with a heavy-duty 70cm x 70cm galvanised grating. This robust flooring solution features a practical design with a sequence of precisely spaced, sturdy bars that provide excellent load-bearing capacity while facilitating efficient drainage of liquids, debris, and other materials. Built to withstand high foot traffic and the toughest conditions, this grating is ideal for a wide range of industrial and commercial environments.

Durability and Strength

Crafted from high-quality hot-dipped galvanised steel, this grating offers exceptional corrosion resistance, making it suitable for both indoor and outdoor use. It is built to endure harsh weather conditions, ensuring reliable performance and longevity. With a metal thickness of 4mm, this product boasts an impressive load capacity of 490kg, delivering superior stability and durability even in demanding environments. The thicker metal structure not only enhances resilience against impacts but also provides a safer, more stable surface for foot traffic.

Aesthetics and Practicality

In addition to its practical applications, the zinc-coated steel grating features a sleek, modern aesthetic that enhances the visual appeal of industrial and commercial spaces. Its clean lines and professional appearance make it an attractive choice for any environment, blending functionality with style.

Easy Installation and Customisation

The installation of this galvanised grating is hassle-free and highly versatile, allowing for seamless integration into various settings. Its modular design enables easy customisation, making it possible to create tailored walkways, elevated platforms, or stair treads to meet your specific requirements. The lightweight nature of the grating simplifies handling and transportation without compromising its structural integrity.

Features and Specifications

This heavy-duty galvanised grating includes the following features:

- Heavy-duty galvanised steel construction

- Weatherproof zinc coating for enhanced durability

- Large 70cm x 70cm mesh grid for effective drainage

- Load-bearing capacity of up to 490kg

- Sturdy 4mm thick metal for increased stability

Specifications are as follows:

- Colour: Silver

- Material: Steel

- Zinc Coating: Above 260g/m²

- Corrosion Protection: Hot Dip Galvanised (EN ISO 1461)

- Grating Standard: DIN 24537

- Weight: 14kg

- Height: 30mm (3cm / 1.2")

- Width: 700mm (70cm / 27.6")

- Depth: 700mm (70cm / 27.6")

- Metal Thickness: 4mm

- Grid Hole Dimensions: 32mm x 100mm

This galvanised grating walkway, measuring 70cm x 70cm, is the perfect solution for reliable flooring, combining excellent drainage properties with superior durability to meet the needs of various industrial and commercial applications.
