Galvanised Treble Lifting Pulley Block 4" (Triple Sheave Eye Wire Rope)

ManoMano

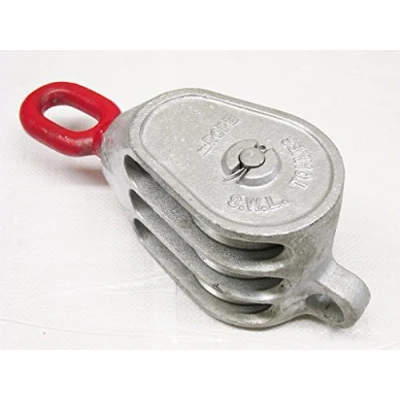

Red Head GMI Treble Sheave Block With Swivel Eye Safe Working Load - 1 Ton Suits Wire Rope - 16MM Finish - Galvanised Conforms To: BS EN 13157: 2004+A1: 2009 Product Code Safe Working Load A(MM) B(MM) C(MM) D(MM) E(MM) F(MM) G(MM) SFRHGBTE4 1 Ton 230 63 82.5 16.5 34.5 76.5 19.5 SFRHGBTE5 1.5 Ton 275 83 96 22.5 47.75 93 22.5 SFRHGBTE6 3 Ton 330 100 124 26 55.5 115 30.5 SFRHGBTE8 3.9 Ton 385 140 147 26 55.5 147 33 SFRHGBTE10 5 Ton 500 175 155 39.5 67 195 35 Pulley Blocks Are Used For Various Lifting And Towing Applications. These Can Also Be Used For Re-Directing Rope. This Particular Model Is A Red Head Treble Block And Comes With A Swivel Eye. This Block Is For Use With 16MM Wire Rope. This Model Comes With A Built In Becket. These Are Galvanised To Help Against Corrosion. Test Certificate Included (Sent via eMail) Please Note We Supply A Huge Variety Of Lifting Equipment *** FREE DELIVERY *** Product Code - SFRHGBTE4

Amazon

Used for various lifting and towing applications. Conforms to BS EN 13157: 2004+A1: 2009 Suitable for 16MM Wire Rope SWL - 1 Ton A - 230MM B - 63MM C - 82.5MM D - 16.5MM E - 34.5MM F - 76.5MM G - 19.5MM, Manufacturer: SecureFix Direct
