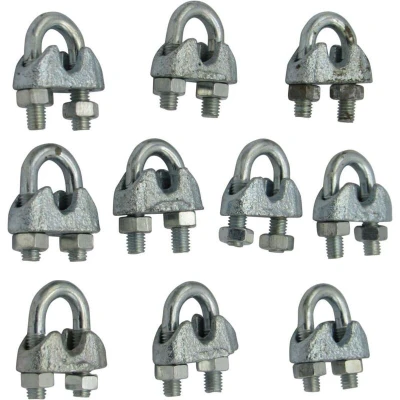

Galvanised Wire Rope Grips Clamp 10MM x10 (Bulldog Cable Commercial DIN741)

General description Our 10MM Wire Rope Grips are manufactured from mild steel with a galvanised coating for corrosion resistance, making them ideal for use in rigging setups on boats or similar applications on land. This pack includes 10 grips designed to suit 10MM wire rope, perfect for creating loops in a rope assembly or for temporary joins. Technical specifications Product Code: SFCOMG10 Product Weight: 0.6 KG Finish: Galvanised Quantity: 10 Dimensions: A: 24 MM B: 11.5 MM C: 18 MM D: 8 MM E: 45 MM F: 17 MM G: 34 MM Installation Prior to fitting, ensure the threads on the nuts and bolts are well greased. Maintain a spacing of at least 6 times the diameter of the rope between grips. Orient the grip correctly, placing the 'u' bolt on the unloaded end of the rope. Tighten each nut evenly and in turn to achieve the recommended torque settings. After installation, leave unused for 24 hours and check the torque setting again, re-tightening if necessary. After the first application of
