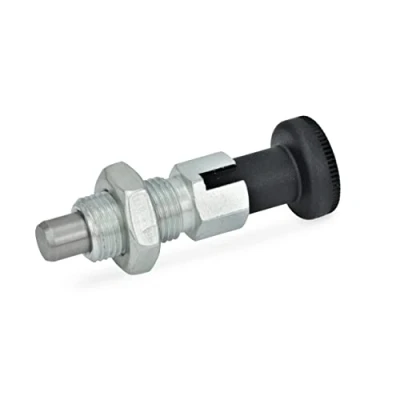

Ganter Normelemente GN 717 8 M12X1.5 CK ST Locking Bolt, Silver, Gewinde d2: M12x1,5, Set of 2 Pieces

Locking path l1: 8 mm; thread length l2: 24 mm; bolt diameter d1: 8 mm; thread d2: M12x1, 5; hex length l3: 9 mm Box contents: 2 locking bolts Shape CK: with locking lock, with locking nut Guide (threaded part): galvanised steel, blue passivated, locking pin: rust-proof stainless steel (1.4305); compression spring: rust-proof stainless steel (1.4310); button: polyamide black, matt, cannot be dismantled Max. Tightening torque in Nm: 20; spring pressure in N: 6 (start) - 22 (end), Manufacturer: Ganter Normelemente
