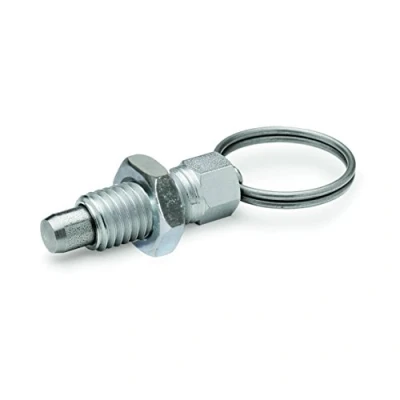

Ganter Normelemente GN 717 8 M16X1.5 AK ST Locking Bolt, Silver, Gewinde d2: M16x1,5, Set of 2 Pieces

Locking path l1: 8 mm; thread length l2: 24 mm; bolt diameter d1: 8 mm; thread d2: M16x1, 5; hex length l3: 9 mm Box contents: 2 locking bolts Form AK: with pull ring, with locking nut Guide (threaded part): galvanised steel, blue passivated, locking pin: rust-proof stainless steel (1.4305); compression spring/pull ring: rust-proof stainless steel (1.4310) Max. Tightening torque in Nm: 80; spring pressure in N: 6 (start) - 22 (end), Manufacturer: Ganter Normelemente
