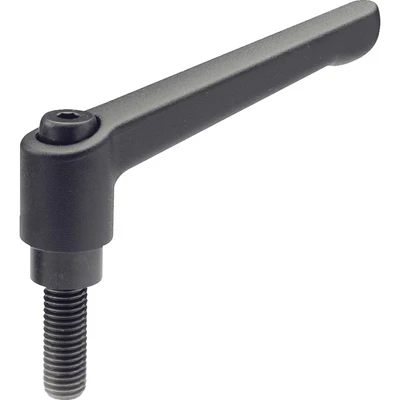

Ganter Standard Elements Adjustable Clamping Lever with Screw Thread GN 300, Handle Length: 78 mm, Screws Burnished Steel Die Cast Zinc Black Plastic Pack of 1, Black, 300 M10 32 SW

ManoMano

Ganter: GN300-78-M10-32-SW Adjustable Hand Lever; Black, Male Ideal for use whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged. Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage. Features: -Zinc die casting -Plastic coated -Black, RAL 9005, textured finish -Steel threaded stud and retaining screw, blackened -Tensile strength class 5.8 MPN: 300-78-M10-32-SW EAN: 4045525152243 GN300-78-M10-32-SW Adjustable Hand Lever; Black, Male Attributes: D1: M10mm MFR Part No.: GN300-45-M10-32-SW Type: SW (Threaded Insert) d3: 16.0mm d4: 21.0mm h1: 36.0mm h2: 8.0mm h3: 55mm l1: 78mm

Zoro Tools

Ideal for use whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged. Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage. Features: -Zinc die casting -Plastic coated -Black, RAL 9005, textured finish -Steel threaded stud and retaining screw, blackened -Tensile strength class 5.8

Amazon

Handle length: 78 mm; thread d: M10; thread length l2: 32 mm; height h: 54 mm With threaded screw Handle body: die-cast zinc; plastic-coated: black, RAL 9005 textured matt Screw insert and retaining screw: burnished steel RoHS Compliant, Weight: 0.31305641204 pounds, Manufacturer: Ganter Normelemente
