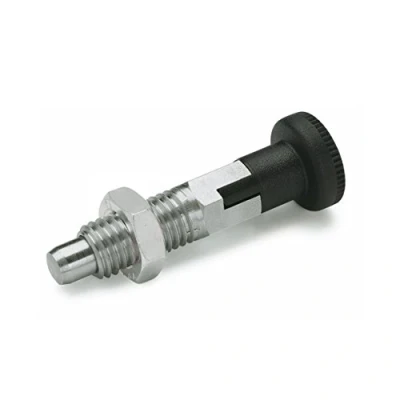

Ganter Standard Elements GN 717 10 5 HD M16x1 Stainless Steel Locking Bolt, Silver, M16X1, CK ST

Locking path l1: 8 mm; thread length l2: 24 mm; bolt diameter d1: 10 mm; thread d2: M16x1, 5; hex length l3: 9 mm Box contents: 2 locking bolts Shape CK: with locking lock, with locking nut Guide (threaded part): galvanised steel, blue passivated, locking pin: rust-proof stainless steel (1.4305); compression spring: rust-proof stainless steel (1.4310); button: polyamide black, matt, cannot be dismantled Max. Tightening torque in Nm: 80; spring pressure in N: 4 (start) - 27 (end), Weight: 0.32187490252 pounds, Manufacturer: Ganter Normelemente
