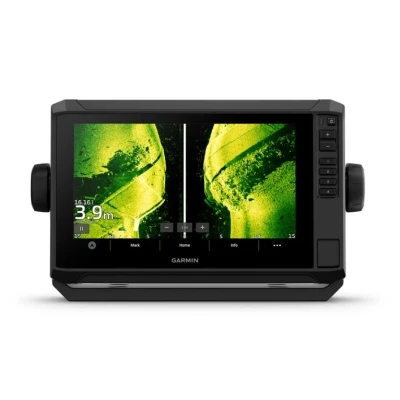

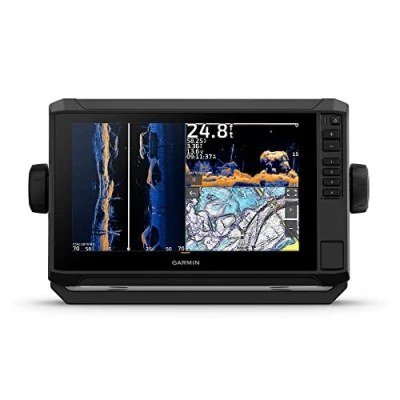

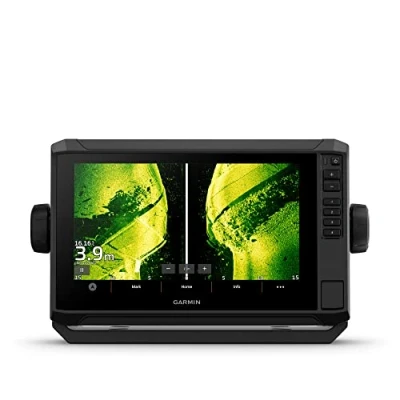

Garmin ECHOMAP UHD2 92sv with GT56 Transducer, 9" Touchscreen Chartplotter, Worldwide Basemap

Fishdeal

Garmin ECHOMAP UHD2 92sv Touchscreen Fish Finder with GT56-TM Transducer - Screen size: 9" (19.8 × 11.5 cm) - Screen resolution: 1024 × 600 pixels - Screen type: WSVGA (TN) - Operation: Touchscreen with keyed-assist - Device dimensions: 26.4 × 16.6 × 8.0 cm - Weight: 1.3 kg - Water resistance: IPX7 - Mounting: Bracket or flush mount - Power supply: 9-18 Vdc - Consumption: 1.72A typical (12V) / 3.5A max (12V) - Max power consumption: 20.7W (at 10V) - Transmit power: 500W - Traditional sonar: (single channel CHIRP 50/77/83/200 kHz + L/M/H CHIRP) - SideVü: 260/455/800/1000/1200 kHz - ClearVü: 260/455/800/1000/1200 kHz - Routes: 100 - Waypoints: 5,000 - Tracklog: 50,000 points - Compatible with NMEA 2000 - Transducer port: 1× 12-pin - Tracks: 50 saved tracks - GPS receiver: Built-in, 10 Hz - Garmin Marine Network ports: 1 - Card slot: 1× microSD (max 32 GB) - Wireless: Wi-Fi (local) / Bluetooth / ANT+ - Satellite systems: GPS / GLONASS / Galileo / BeiDou - Supports Panoptix and LiveScope live-scanning sonar - Sharing with other ECHOMAP UHD2’s: sonar, waypoints, and routes (wireless) - ActiveCaptain support: updates, OneChart, Quickdraw Community data, and more - Color palettes: Vivid (high contrast) for better separation of fish and structure - Included: GT56-TM transducer, power cable, tilt mount with quick-release cradle, protective cover, mounting hardware, and documentation The Garmin ECHOMAP UHD2 92sv is a complete fish finder/chartplotter with a bright 9" touchscreen and keyed-assist, ideal for quickly switching between chart and sonar. You fish with three types of sonar on one screen (Traditional CHIRP, ClearVü, and SideVü), and thanks to the Vivid color palettes, you see structure and fish more clearly separated. This set comes with the GT56-TM transducer, plus bracket, protective cover, and all mounting hardware. With microSD support, wireless sharing with other UHD2 units, and connection with the ActiveCaptain app, you have a system that not only provides an overview but also remains easy to update and expand.

Amazon

Easy-to-use 9” chartplotter with a bright, sunlight-readable touchscreen display with improved detail, clarity and viewing angle Included GT56-TM transducer for Garmin traditional, ClearVü and SideVü scanning sonars Built-in worldwide basemap with support for Garmin Navionics+ and Garmin Navionics Vision+ cartography, BlueChart g3 coastal charts and LakeVü g3 inland maps Built-in Wi-Fi connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter Wirelessly connects to your Force trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more
