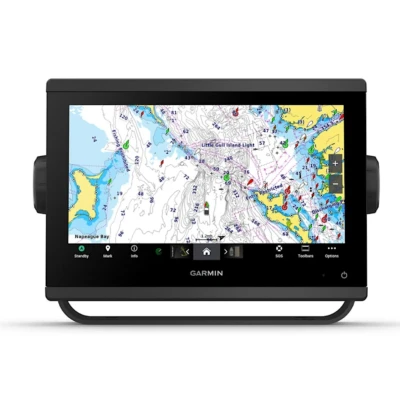

Garmin GPSMAP 923XSV with SIDEVÜ, CLEARVÜ and Traditional Chirp World Base Map without Transducer, Women's, Multicoloured, One Size

Garmin Gpsmap 923xsv 9´´+clearvü/sidevü Chirp Plotter With Cartography. Experience unparalleled navigation with the Garmin GPSMAP 923xsv. This 9” chartplotter boasts a faster, sharper, high-resolution IPS display for perfect clarity in any light. See fish and structure in vivid detail with built-in Ultra High-Definition ClearVü and SideVü scanning sonars. Navigate confidently with preloaded BlueChart g3 and LakeVü g3 maps. Its powerful processing and seamless network connectivity let you build a fully integrated marine system, connecting to engines, radar, and more. Manage your entire experience from this sleek, smart hub. With its sleek design, powerful processing and upgraded IPS display, this advanced 7, 9 or 12 chartplotter integrates seamlessly into your Garmin marine system.- Easily integrate with more engines.- Connect to compatible third-party devices with OneHelm™ digital switching.- Easily build your marine system using the best of network connectivity.- Navigate any waters with preloaded mapping and coastal charts.- See below your boat with built-in sonar capabilities.- Manage your marine experience from nearly anywhere.Features:Ultra High-Definition Scanning Sonar:- Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP® X3 series also supports 1 kW CHIRP traditional sonar capabilities.Panoptix™ Sonar Support:- Pair with Panoptix or LiveScope™ easy-to-interpret live sonar (transducer required, sold separately) to see all around your boat in real time.Faster, Sharper, Smarter:- With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it's easy to retrofit this plotter in a wider range of dash configurations.Improved Display Optics:- New higher-resolution IPS displays for 9 and 12 plotters offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9 GPSMAP devices.Preloaded Mapping:- Experience unparalleled coverage and detail with preloaded BlueChart® g3 coastal charts and LakeVü g3 inland maps featuring integrated Garmin and Navionics® content and Auto Guidance3 technology.Optional Bluechart® G3 Vision® Charts:- Upgrade to our reliable premium charts2, which add even more unparalleled features, such as high-resolution relief shading, to help you on each trip.Optional Radar Bundle:- To help you avoid weather and traffic on the water, the compact 4 kW GMR™ 18 HD+ dome radar is available as a bundled option with your GPSMAP chartplotter/sonar package.Garmin Sailassist™ Sailing Features:- View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more3.Optional Premium Navigation Features:- These optional charts offer the best of Garmin and Navionics® data, Auto Guidance3 technology and other premium navigation features.Garmin Marine Network:- If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.Nmea 2000® And Nmea 0183 Networks:- Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.Activecaptain® App:- Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Helm, Garmin Quickdraw™ Community data and more.Integrated Ant® Technology:- Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.J1939 Connectivity:- Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.Onehelm Feature:- This feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.Specifications:General:- Dimension: 9.2´´ X 6.4´´ X 3´´ (23.3 X 16.2 X 7.6 Cm)- Touchscreen: Yes- Input: Touchscreen- Display Size: 7.8´´ X 4.4´´, 9.0´´ Diagonal (19.9 Cm X 11.2 Cm, 22.9 Cm Diagonal)- Display Resolution: 1280 X 720 Pixels- Display Type: Wxga- Weight: 3.6 Lbs (1.6 Kg)- Waterproof: Ipx7- Mounting Options: Bail, Flush Or Flat (Garmin Does Not Offer Any Hardware Or Accessories For A Flat-Mount Installation. Professional Tools And Knowledge Is Required.)Maps & Memory:- Navigationigation Accepts Data Cards: 2 Microsd Cards (Back Of Unit)- Waypoints: 5000- Track Points: 50,000- Tracks: 50 Saved Tracks- Navigation Routes: 100Sensors:- Has Built-In Receiver: Yes- Receiver: 10 Hz- Nmea2000 Compatible: Yes- Nmea0183 Compatible: Yes- Gps: Yes- Glonass: Yes- Galileo: Yes- Supports Waas: YesBuilt-in Maps- Built-In Auto Guidance: Yes- Bluechart (Coastal): Yes- Lakevu (Inland): Yes- (Sounder) Tide Tables: YesOptional Map Support:- Bluechart G3: Yes- Bluechart G3 Vision: Yes- Lakevu G3: Yes- Lakevu G3 Ultra: Yes- Garmin Navionics+™: Yes- Garmin Navionics Vision+™: Yes- (Sounder) Topo: Yes- Standard Mapping: Yes- Garmin Quickdraw Contours: Yes- Raster Chart Support: YesChartplotter Features:- Smart Mode Compatible: Yes- Ais: Yes- Dsc: Yes- Supports Fusion Lync Compatible Radio: Yes - Gsd Black Box Sonar Support: Yes- Gcv Black Box Sonar Support: Yes- Bluechart Mobile Planning Compatible: Yes- Grid (Garmin Remote Input Device) Compatible: Yes- Wireless Remote Compatible: Yes- Sailing Features: Yes- Spoken Audio Alerts: Yes- Onehelm Support: YesSonar Features & Specifications:- Displays Sonar: Yes- Power Output: 1 Kw- Traditional Sonar (Dual Frequency/Beam): Built-In (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp)- Clearvü: Built-In 260/455/800/1000/1200 Khz- (Sounder) Sidevü: Built-In 260/455/800/1000/1200 Khz- Panoptix™ Sonar: Yes- Livescope: YesConnections:- Nmea 2000 Ports: 1- Connections Nmea0183 Input Ports: 1- Nmea 0183 Input (Tx) Ports: 1- Video Input Ports: 1 (Bnc Composite)- J193 9 Ports: 1- Connections Garmin Marine Network Ports: 1- 12-Pin Transducer Ports: 1- Usb Ports: Yes- Bnc External Gps Antenna Port: Yes- (Sounder) Bluetooth®: Yes- Ant+ (Connectivity): Yes- Garmin Wi-Fi Network (Local Connection): YesElectrical Features:- Power Input: 10 To 32 Vdc- Typical Current Draw At 12 Vdc: 1.37 A- Maximum Current Draw At 12 Vdc: 3.20 A- Maximum Power Usage At 10 Vdc: 40.2wIN THE BOX:- GPSMAP 923xsv chartplotter- MicroSD™ card preinstalled- Power cable- NMEA 2000® T-connector- NMEA 2000 drop cable (2 meters)- 8-pin transducer to 12-pin sounder adapter cable- Bail mount kit with knobs- Flush mount kit with gasket- Protective cover- Trim piece snap covers- DocumentationWith 18 HD+ Radar:Above contents plus:- GMR 18 HD+ radome- Mounting hardware kit- Power cable (15 m)- Network cable (15 m)- Installation instructions- Mounting templateCompatible Devices:- Compact Reactor™ 40 Hydraulic Autopilot Starter PackCompact Reactor™ 40 Hydraulic Autopilot Starter Pack- Compact Reactor™ 40 Hydraulic Autopilot with GHC™ 20 and Shadow Drive™ PackCompact Reactor™ 40 Hydraulic Autopilot with GHC™ 20 and Shadow -Drive™ Pack- Compact Reactor™ 40 Hydraulic Autopilot with GHC™ 20 CorepackCompact Reactor™ 40 Hydraulic Autopilot with GHC™ 20 Corepack- Force® Trolling Motor- Garmin AIS™ 300 Blackbox Receiver- Garmin AIS™ 600 Blackbox Transceiver- GC™ 10GC™ 10- GC™ 100 Wireless Camera- GC™ 12 Marine Camera- GC™ 14 Marine Camera- GC™ 200 Marine IP Camera- GCV™ 10 Scanning Sonar Module- GCV™ 20GCV™ 20- GLS™ 10 Sonar ModuleGLS™ 10 Sonar Module- GMI™ 20GMI™ 20- GMR™ 1224 xHD2- GMR™ 1226 xHD2- GMR™ 18 HD+- GMR™ 18 HD- GMR™ 18 xHD- GMR™ 24 HD Radome- GMR™ 24 xHD- GMR™ 2524 xHD2- GMR™ 2526 xHD2- GMR™ 406 xHD Open Array Radar and Pedestal- GMR™ 424 xHD2- GMR™ 426 xHD2- GMR™ 606 xHD Open Array Radar and Pedestal- GMR™ 624 xHD2- GMR™ 626 xHD2- GMR Fantom™ 124- GMR Fantom™ 126- GMR Fantom™ 18- GMR Fantom™ 24- GMR Fantom™ 254- GMR Fantom™ 256- GMR Fantom™ 4- GMR Fantom™ 54- GMR Fantom™ 56- GMR Fantom™ 6- GNX™ 20GNX™ 20- GNX™ 21GNX™ 21- GNX™ Wireless Sail Pack 43- GPS 19x HVS (NMEA 0183)- GPS 19x NMEA 2000®- GPS 24xd- GPS 24xd- GSD™ 24 Advanced Sonar Module- GSD™ 25 Premium Sonar Module- GSD™ 26 CHIRP Professional Sonar Module- Gwind™- GWind™ Raceg- GWind™ Wireless 2g- GXM™ 53- GXM™ 54- Meteor™ 300 Audio System- MSC™ 10 Marine Satellite Compass- OnDeck™ Hub- Panoptix LiveScope™ System- Panoptix™ PS22-TR- Panoptix™ PS30- Panoptix™ PS31- Panoptix™ PS51-TH- Panoptix™ PS60- Reactor™ 40 Hydraulic Autopilot- Reactor™ 40 Hydraulic Corepack with SmartPump- Reactor™ 40 Hydraulic Corepack with SmartPump v2- Reactor™ 40 Kicker Autopilot- Reactor™ 40 Mechanical/Retrofit/Solenoid Corepack- Reactor™ 40 Steer-by-wire Corepack for Viking® VIPER™0- Reactor™ 40 Steer-by-wire Corepack for Volvo Penta- Reactor™ 40 Steer-by-wire Corepack for Volvo-Penta®- Reactor™ 40 Steer-by-wire Corepack for Yamaha® Helm Master®- Reactor™ 40 Steer-by-wire Corepack for Yamaha® Helm Master™ - Reactor™ 40 Steer-by-wire Standard Corepack- VHF 100 Marine Radio- VHF 110 Marine Radio- VHF 115 Marine Radio- VHF 210 AIS Marine Radio- VHF 210 Marine Radio- VHF 215 Garmin AIS™ Marine Radio- VHF 215 Marine Radio- VHF 315 Marine Radio. tradeinn Waveinn

Garmin GPSMAP 923xsv Chartplotter Fishfinder with Worldwide Basemap (9-inch) - Fishfinder without transducer - Model: GPSMAP 923xsv - Sonar frequencies depend on the transducer used - Traditional sonar: 50/200, 77/200 and 83/200kHz - Single Channel CHIRP: 40-250kHz - ClearVü CHIRP: 260/455/800kHz - Ultra High-Definition ClearVü: 800kHz - Ultra High-Definition SideVü: 1200kHz - UHD ClearVü CHIRP range: 760-880kHz - UHD SideVü CHIRP range: 1060-1170kHz - CHIRP transmit power up to 1000W - ClearVü and SideVü CHIRP transmit power up to 500W - 9-inch WXGA touchscreen - Resolution: 1280×720 - Weight: 1.6kg - Waterproof: IPX7 - Worldwide basemap - 10Hz GPS receiver - 5,000 waypoints - 100 routes - 50,000 track points - 2 microSD card slots - 1 Garmin Marine Network port - 1 video input via BNC - 1 J1939 port available - ANT+ connectivity - NMEA 2000 compatible - NMEA 0183 compatible - ActiveCaptain compatible - OneHelm support - Fusion-Link support - Garmin SmartMode compatible - GSD black box support - GCV black box support - GRID remote control compatible - Spoken audio alerts - Garmin Quickdraw Contours support - AIS and DSC support for connected systems - Support for optional BlueChart and LakeVü charts - Support for Garmin Navionics+ and Garmin Navionics Vision+ - Supplied with microSD card, power cable, and NMEA 2000 accessories - Supplied with bracket mount, flush mount kit, protective cover, and documentation The Garmin GPSMAP 923xsv is an advanced 9-inch chartplotter and fishfinder for boat anglers who want to seamlessly combine navigation and sonar. The bright WXGA touchscreen provides ample space to clearly read charts, sonar views, and other data. SideVü helps you view structure and fish beside the boat, ClearVü delivers a sharp image below the boat, and traditional CHIRP sonar is suitable for identifying fish and bottom contours. Thanks to the worldwide basemap, fast 10Hz GPS receiver, and extensive network support, this unit works perfectly as a central display within a Garmin marine system.
