Geberit Sigma 8cm Extra Small Flat Wall Mounted Toilet Stand (UP720)

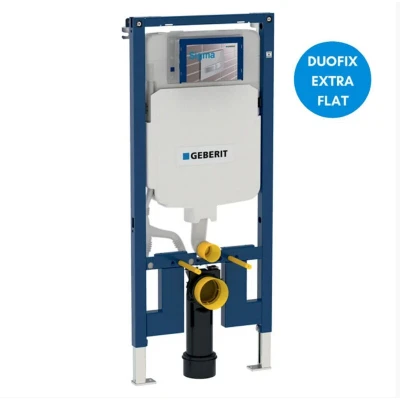

GENERAL DESCRIPTION Geberit Duofix UP720 Extra-Flat Support Frame 114 cm with Sigma Concealed Cistern (111.796.00.1) is a self-supporting, powder-coated frame designed for ceramic WCs with small contact surfaces. It features height-adjustable support feet and a tool-free adjustable connection bend. TECHNICAL SPECIFICATIONS Self-supporting, powder-coated frame with ø 9 mm holes for wooden frame construction Galvanised, height-adjustable, non-slip support feet fit U-profiles UW 50 and Duofix rails Tool-free adjustable connection bend, usable at varying depths or vertical with front flush Extended waste connector bend for floor connection; sound-insulated fastening Sigma concealed cistern with front actuation, fully insulated against condensation Immediate post-flush available with factory settings Tool-free access and maintenance of cistern Water inlet connection at the top left Cut-to-length protection box for flush plate area Includes conduit pipe for Geberit AquaClean shower toilet
