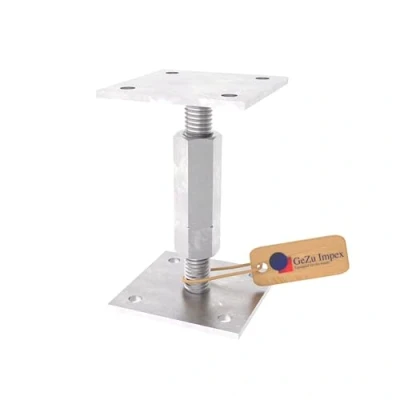

GeZu Impex® Adjustable Post Support 70 x mm Electroplated height adjust holder elevated base

PRODUCT - Post support height adjustable Andy is perfect for many gardening and modelling projects, as it can still be adjusted after installation thanks to its right-hand / left-hand thread. FEATURES - The adjustable post support can be securely screwed to a level concrete or wooden floor using 4 holes per plate, each with a diameter of 10 mm. If the foundation is uneven, the Post Support Andy allows for height adjustments between 115 mm and 160 mm, enabling leveling of height differences up to 50 mm. VERSATILITY - For stability, approx. 10 - 20 mm of the adjustment range is required for thread safety, and the galvanisation ensures the Post support is protected from external weather influences. TECHNICAL DATA - Adjustment range: 110 - 160 mm - Support plate: 70 x 70 mm - Material thickness of support plate: 5 mm - Base plate: 85 x 85 mm - Material thickness of base plate: 5 mm - Holes: 8 holes Ø 10 mm - Slotted nut: AF 30 - Hole spacing of support plate: 50 mm - Hole spacing of base plate: 55 mm - Material type - galvanized steel
