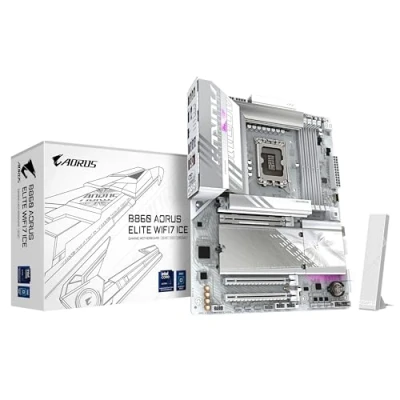

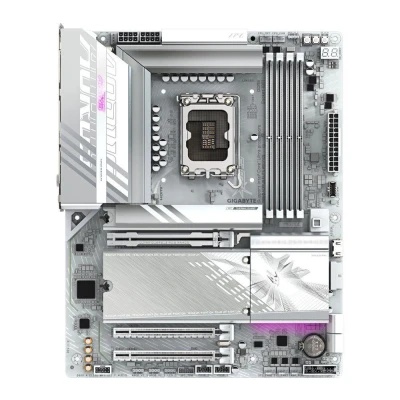

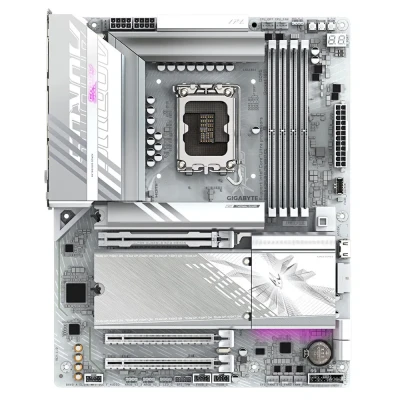

GIGABYTE B860 AORUS ELITE WIFI7 ICE Motherboard Intel Core Ultra Series CPUs, 14+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 7, USB 4

Gigabyte B860 A Elite Wifi 7 Ice Motherboard. Unleash peak performance with the GIGABYTE B860 A Elite WiFi 7 ICE motherboard. Designed for Intel Core Ultra processors (LGA 1851), it boasts Wi-Fi 7 and 2.5Gb Ethernet for blazing-fast connectivity. Support for DDR5 memory up to 9200MHz, PCIe 5.0 M.2 slots, and robust storage options empower your build. Featuring premium cooling, extensive I/O including USB4 and DisplayPort 2.1, and ATX form factor, it’s the ultimate foundation for your next high-end PC. Specifications: Weight and dimensions:- Height: 35 mm- Broad: 305 mm- Depth: 244 mmMemory: - Memory Channels: Double channel- ECC Compatibility: ECC and non-ECC- Maximum internal memory: 256 GB- Unbuffered memory: Yes- Maximum internal memory per slot: 64 GB- Number of memory slots: 4- Type of memory slots: DIMM- Maximum supported memory clock speed: 9200 MHz- Supported memory clock speeds: 5600,6400,9200 MHz- Supported memory types: DDR5-SDRAMProcessor: - Processor manufacturer: Intel- Supported processor: Intel Core Ultra (Series 1), Intel Core Ultra (Series 2)- Processor socket: LGA 1851 (Socket V1)- Supported processor sockets: LGA 1851Rear Panel I/O Ports: - Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2- Number of USB4 Gen 2 ports×2: 1- Number of USB 2.0 ports: 4- Ethernet LAN (RJ-45) ports number: 1- WiFi-AP antenna connector: 2- Digital audio, optical output: 1- Number of DisplayPorts: 1- DisplayPort Version: 2.1- Line input: Yes- Number of HDMI ports: 1- HDMI version: 2.1- S/PDIF output port: Yes- Headphone outputs: 1Internal I/O: - USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1- USB 2.0, connectors: 2- ATX power connector (24 pin): Yes- EPS power connector (8-pin): Yes- Number of EPS power connectors (8 pin): 2- CPU fan connector: Yes- Number of CPU fan connectors: 2- Front panel audio connector: Yes- Front panel connector: Yes- TPM connector: Yes- Connector for RGB LED strips: Yes- Number of SATA III connectors: 4- Number of connectors for RGB LED strips: 4- Number of chassis fan connectors: 4- Number of connectors for water pumps: 2Connection: - Bluetooth: Yes- Bluetooth version: 5.4- LAN Controller: Realtek RTL8125- Wi-Fi standard: Wi-Fi 7 (802.11be)- Ethernet: Yes- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)- WLAN Controller Model: Realtek RTL8922AE- Ethernet interface type: 2.5 Gigabit Ethernet- Wifi: YesExpansion slots: - Number of M.2 slots (M): 3- Larger key size of the first M.2: 25110- Highest generation of PCI Express from the first M.2: 5.0- Larger second M.2 key size: 22110- Highest generation of PCI Express of the second M.2: 4.0- Larger third M.2 key size: 22110- Highest generation of PCI Express of the third M.2: 4.0- PCI Express x16 (Gen 4.x) Slots: 2- PCI Express x16 (Gen 5.x) Slots: 1Package contents: - Antenna included: Yes- Batteries included: Yes- Included software: Norton Internet Security (OEM version) LAN bandwidth management software- Screws included: YesBIOS: - ACPI Version: 5.0- Types of BIOS: UEFI AMI- BIOS, memory size: 256 MB/s- System Management BIOS (SMBIOS) version: 2.7- Jumper Clear CMOS: Yes- Desktop Management Interface (DMI) version: 2.7Other features:- Weight: 2.21 kgGraphics: - DirectX version: 12.0- HDCP: Yes- Maximum resolution: 4096 x 2160 PixelsFeatures:- Feeding: ATX- Audio output channels: 7.1 channels- Sound chip: Realtek ALC897- Chipset: Intel B860- Component for: PC- Form factor: ATX- Chipset Family: Intel- PC Health Monitoring: Fan, Temperature, Voltage, Water cooling- Supported Windows operating system: Windows 11 x64Storage regulators: - RAID Support: Yes- Number of HDDs supported: 4- Supported storage disk interfaces: M.2, SATA III- RAID Levels: 0, 1, 5, 10- Number of supported storage units: 7- Supported storage drive types: HDD & SSDBattery: - Number of battery cells: 1- Battery weight: 3 g- Lithium weight per battery: 0.07 g- Battery technology: Lithium-Manganese Dioxide (LiMnO2)- Battery Type: CR2032. tradeinn Techinn

If you want to build a proper compact machine, you need a solid base. This Aorus Elite ICE motherboard is ready for Intel® Core™ Ultra processors (Series 2). You can plug in up to 256 GB of DDR5 RAM and blaze through your workflows. With the Twin Digital VRM Design you can safely overclock the CPU and push it to the max. And you can forget about slow loading. The PCIe 5.0 M.2 SSD slot let you install a blazing fast drive. Good to know - WiFi 7 gives you incredibly fast wireless internet, and there's 2.5 Gigabit Ethernet, too - With Infinite Memory Performance you can overclock compatible DDR5 RAM up to 9200 MT/s - The Advanced Thermal Design keeps your motherboard cool even with high-end components - Smart Fan 6 gives you precision control over your cooling - To make building a PC easier, it's got user-friendly EZ-latches for some of the components - Connect loads of LEDs to create unique custom lighting controlled by Gigabyte RGB Fusion
