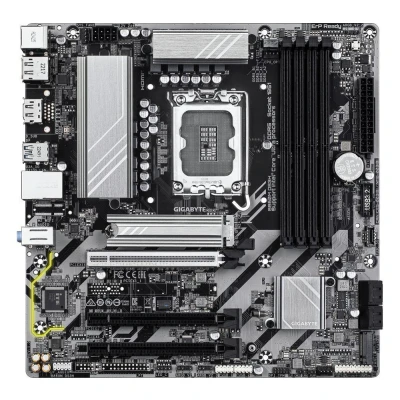

GIGABYTE B860M D3HP Motherboard Intel Core Ultra Series CPUs, 4+1+2+1 Phases VRM, up to 9066MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

TechInn

Gigabyte B860m D3hp 1.0 Motherboard. Unleash next-gen performance with the GIGABYTE B860M D3HP 1.0 motherboard. Designed for Intel Core Ultra Series 1 & 2 processors (LGA 1851 socket), it boasts DDR5 memory support up to a staggering 256GB with speeds of 9066 MHz. Featuring dual-channel memory and ECC compatibility, it ensures robust stability. Expand your system with one PCIe 5.0 x16 slot, two M.2 slots (PCIe 4.0), and four SATA III ports for ample storage. Connectivity is covered with Gigabit Ethernet, USB 3.2 Gen 1 ports, and dual DisplayPort 2.1 and HDMI 2.1 outputs. Enhanced PC health monitoring and RAID support add further value. Specifications:Weight and dimensions:- Height: 35 mm- Broad: 244 mm- Depth: 244 mmMemory: - Memory channels: Double channel- ECC Compatibility: ECC and non-ECC- Maximum internal memory: 256 GB- Unbuffered memory: Yes- Maximum internal memory per slot: 64 GB- Number of memory slots: 4- Type of memory slots: DIMM- Maximum supported memory clock speed: 9066 MHz- Supported memory clock speeds: 5600,6400,9066 MHz- Supported memory types: DDR5-SDRAMProcessor: - Processor manufacturer: Intel- Compatible processor: Intel Core Ultra (Series 1), Intel Core Ultra (Series 2)- Processor socket: LGA 1851 (Socket V1)- Supported processor sockets: LGA 1851Rear Panel I/O Ports: - Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3- PS/2 mouse port: 1- Number of USB 2.0 ports: 3- Ethernet LAN (RJ-45) number of ports: 1- Number of DisplayPorts: 1- DisplayPort version: 2.1- Line input: Yes- Number of HDMI ports: 1- HDMI version: 2.1- Headphone outputs: 1Internal I/O: - USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0- USB 2.0, connectors: 2- ATX power connector (24 pin): Yes- EPS power connector (8-pin): Yes- Number of EPS power connectors (8 pins): 1- CPU fan connector: Yes- Number of CPU fan connectors: 2- Serial port header: 1- Front panel audio connector: Yes- Front panel connector: Yes- TPM connector: Yes- Connector for RGB LED strips: Yes- Number of SATA III connectors: 4- Number of connectors for RGB LED strips: 3- Number of chassis fan connectors: 2- Number of connectors for water pumps: 2Connection: - LAN Controller: Realtek RTL8111H- Ethernet: Yes- Ethernet interface type: Gigabit EthernetExpansion slots: - Number of M.2 slots (M): 2- Larger key size of the first M.2: 2280- Highest generation of PCI Express from the first M.2: 4.0- Larger key size of the second M.2: 2280- Highest generation of PCI Express of the second M.2: 4.0- PCI Express x1 (Gen 3.x) slots: 2- PCI Express x16 (Gen 5.x) slots: 1Package contents: - Batteries included: Yes- Included software: Norton® Internet Security (OEM version) LAN bandwidth management software- Screws included: YesBIOS: - ACPI version: 5.0- Types of BIOS: UEFI AMI- BIOS, memory size: 256 MB/s- System Management BIOS (SMBIOS) version: 2.7- Jumper Clear CMOS: Yes- Desktop Management Interface (DMI) version: 2.7Other features: - Weight: 1.1 kgGraphics: - DirectX version: 12.0- HDCP: Yes- Maximum resolution: 4096 x 2160 PixelsFeatures: - Feeding: ATX- Audio output channels: 7.1 channels- Sound chip: Realtek ALC897- Chipset: Intel B860- Component for: PC- Form factor: micro ATX- Chipset family: Intel- PC Health Monitoring: Fan, Temperature, Voltage, Water cooling- Supported Windows operating system: Windows 10 x64, Windows 11 x64- Cooling type: PassiveStorage regulators: - RAID support: Yes- Number of HDDs supported: 4- Supported storage disk interfaces: M.2, SATA III- RAID levels: 0, 1, 5, 10- Number of supported storage units: 6- Supported storage drive types: HDD & SSDBattery: - Number of battery cells: 1- Battery weight: 3 g- Weight of lithium per battery: 0.07 g- Battery technology: Lithium-Manganese Dioxide (LiMnO2)- Battery Type: CR2032. tradeinn Techinn

Currys

If you want to build a proper compact machine, you need a solid base. This Gigabyte B860M D3HP motherboard is ready for Intel® Core™ Ultra processors (Series 2). You can plug in up to 256 GB of DDR5 RAM and blaze through your workflows. With the Hybrid VRM Design you can safely overclock the CPU and push it to the max. And you can forget about slow loading. The PCIe 5.0 M.2 SSD slot lets you install a blazing fast drive.Good to know- With XMP you can overclock compatible DDR5 RAM up to 9066 MT/s- The advanced thermal design keeps your motherboard cool even with high-end components- To make building a PC easier, it's got user-friendly EZ-latches for some of the components- Connect loads of LEDs to create unique custom lighting controlled by Gigabyte RGB Fusion- With 2.5 GB Ethernet,you'll have super-fast and rock-solid internet connection

Amazon

Hybrid 4+1+2+1 Phases 50A PPAK VRM Dual Channel DDR5：4*DIMMs PCIe 5.0 x16 with PCIE UD Slot & EZ-Latch MOSFET Heatsinks & PCH Heatsink 1GbE LAN, USB 3.2 Gen1 Type-C
