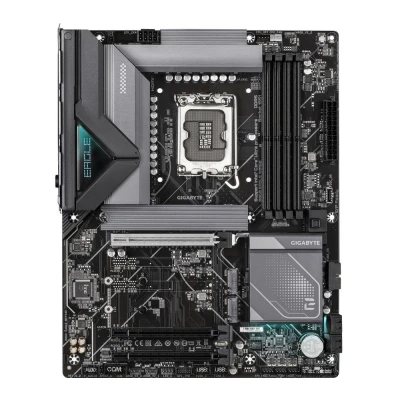

GIGABYTE Eagle WiFi6E B860 LGA1851 Motherboard

TechInn

Gigabyte B860 Eagle Wifi 6e Motherboard. Build your future-proof PC with the GIGABYTE B860 EAGLE WiFi 6E. This ATX motherboard is engineered for Intel´s Core Ultra processors (LGA 1851) and pushes the limits with support for 256 GB of DDR5 RAM at speeds up to 9066 MHz. Dominate gaming and content creation with a PCIe 5.0 x16 slot and an ultra-fast PCIe 5.0 M.2 slot for your primary SSD. Stay seamlessly connected with Wi-Fi 6E, Bluetooth 5.3, and 2.5 Gigabit Ethernet. Comprehensive I/O, including USB 3.2 Gen 2x2 Type-C, and advanced cooling support make it the perfect core for a powerful system. Specifications: Weight and dimensions:- Height: 35 mm- Broad: 305 mm- Depth: 244 mmMemory: - Memory Channels: Double channel- ECC Compatibility: ECC and non-ECC- Maximum internal memory: 256 GB- Unbuffered memory: Yes- Maximum internal memory per slot: 64 GB- Number of memory slots: 4- Type of memory slots: DIMM- Maximum supported memory clock speed: 9066 MHz- Supported memory clock speeds: 5600,6400,9066 MHz- Supported memory types: DDR5-SDRAMProcessor: - Processor manufacturer: Intel- Supported processor: Intel Core Ultra (Series 1), Intel Core Ultra (Series 2)- Processor socket: LGA 1851 (Socket V1)- Supported processor sockets: LGA 1851Rear Panel I/O Ports: - Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1- PS/2 mouse port: 1- Number of USB 2.0 ports: 4- Number of USB 3.2 Gen 2 portsx2 Type-C: 1- Ethernet LAN (RJ-45) ports number: 1- WiFi-AP antenna connector: 2- Number of DisplayPorts: 1- DisplayPort Version: 2.1- Line input: Yes- Number of HDMI ports: 1- HDMI version: 2.1- Microphone, input jack: Yes- Headphone outputs: 1Internal I/O: - USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2- USB 2.0, connectors: 2- ATX power connector (24 pin): Yes- EPS power connector (8-pin): Yes- Number of EPS power connectors (8 pin): 1- CPU fan connector: Yes- Number of CPU fan connectors: 2- Serial port header: 1- Front panel audio connector: Yes- Front panel connector: Yes- TPM connector: Yes- Connector for RGB LED strips: Yes- Number of SATA III connectors: 4- Number of connectors for RGB LED strips: 4- Number of chassis fan connectors: 4- Number of connectors for water pumps: 3- S/PDIF, output connector: YesConnection: - Bluetooth: Yes- Bluetooth version: 5.3- LAN Controller: Realtek RTL8125D- Wi-Fi standard: Wi-Fi 6E (802.11ax)- Ethernet: Yes- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)- WLAN Controller Model: Intel Wi-Fi 6E AX211- Ethernet interface type: 2.5 Gigabit Ethernet- Wifi: YesExpansion slots: - Number of M.2 slots (M): 3- Larger key size of the first M.2: 25110- Highest generation of PCI Express from the first M.2: 5.0- Larger second M.2 key size: 25110- Highest generation of PCI Express of the second M.2: 4.0- Larger third M.2 key size: 25110- Highest generation of PCI Express of the third M.2: 4.0- PCI Express x16 (Gen 4.x) Slots: 2- PCI Express x16 (Gen 5.x) Slots: 1Package contents: - Antenna included: Yes- Batteries included: Yes- Included software: Norton Internet Security (OEM version) LAN bandwidth management software- Screws included: YesBIOS: - ACPI Version: 5.0- Types of BIOS: UEFI AMI- BIOS, memory size: 256 MB/s- System Management BIOS (SMBIOS) version: 2.7- Jumper Clear CMOS: Yes- Desktop Management Interface (DMI) version: 2.7Other features: - Weight: 1.72 kgGraphics: - DirectX version: 12.0- HDCP: Yes- Maximum resolution: 4096 x 2160 PixelsFeatures: - Feeding: ATX- Audio output channels: 7.1 channels- Sound chip: Realtek ALC897- Chipset: Intel B860- Component for: PC- Form factor: ATX- Chipset Family: Intel- PC Health Monitoring: Fan, Temperature, Voltage, Water cooling- Supported Windows operating system: Windows 10 x64, Windows 11 x64Storage regulators: - RAID Support: Yes- Number of HDDs supported: 4- Supported storage disk interfaces: M.2, SATA III- RAID Levels: 0, 1, 5, 10- Number of supported storage units: 7- Supported storage drive types: HDD & SSDBattery: - Number of battery cells: 1- Battery weight: 3 g- Lithium weight per battery: 0.07 g- Battery technology: Lithium-Manganese Dioxide (LiMnO2)- Battery Type: CR2032. tradeinn Techinn

Currys

If you want to build a proper machine, you need a solid base. This Gigabyte Eagle motherboard is ready for Intel® Core™ Ultra processors (Series 2). You can plug in up to 256 GB of DDR5 RAM and blaze through your workflows. With the Twin Digital VRM Design you can safely overclock the CPU and push it to the max. And you can forget about slow loading. The PCIe 5.0 M.2 SSD slot let you install a blazing fast drive. Good to know - WiFi 6E gives you incredibly fast wireless internet, and there's 2.5 Gigabit Ethernet, too - With XMP you can overclock compatible DDR5 RAM up to 9200 MT/s - The Advanced Thermal Design keeps your motherboard cool even with high-end components - Smart Fan 6 gives you precision control over your cooling - To make building a PC easier, it's got user-friendly EZ-latches for some of the components - Connect loads of LEDs to create unique custom lighting controlled by Gigabyte RGB Fusion

Amazon

Twin Hybrid 12+1+2+1 Phases 50A PPAK VRM Dual Channel DDR5：4*DIMMs PCIe 5.0 x16 with PCIE UD Slot & EZ-Latch Plus M.2 Gen5 (Up to 25110) with EZ-Latch Plus Advanced MOSFET Heatsinks/ M.2 Thermal Guard with EZ-Latch Click Realtek 2x2 Wi-Fi 6E with WIFI EZ-Plug 2.5GbE LAN, USB 3.2 Gen2x2 Type-C Q-Flash Plus
