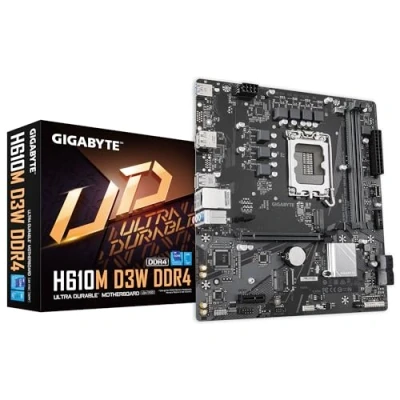

GIGABYTE H610M D3W DDR4 Motherboard Supports 14th Gen. Intel Core CPUs, 5+1+1 phases VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1

Gigabyte H610m D3w Motherboard. Unlock your PC´s potential with the GIGABYTE H610M D3W motherboard. Engineered for 12th-14th Gen Intel Core processors (LGA 1700), it supports up to 64GB DDR4 RAM at speeds up to 3200MHz. Featuring PCIe 4.0 x16, one M.2 slot, and four SATA III ports, it offers versatile storage and expansion. Enjoy robust connectivity with Gigabit Ethernet, multiple USB ports, and high-definition audio. This micro ATX board is a solid foundation for gaming and productivity. Specifications:Weight and dimensions:- Height: 35 mm- Broad: 244 mm- Depth: 220 mmMemory: - Memory channels: Double channel- ECC Compatibility: ECC and non-ECC- Maximum internal memory: 64 GB- Unbuffered memory: Yes- Maximum internal memory per slot: 32 GB- Number of memory slots: 2- Type of memory slots: DIMM- Maximum supported memory clock speed: 3200 MHz- Supported memory clock speeds: 2133,2400,2666,2933,3000,3200MHz- Supported memory types: DDR4-SDRAMProcessor: - Processor manufacturer: IntelCompatible processor: - Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium®- Processor socket: LGA 1700- Supported processor sockets: LGA 1700Rear Panel I/O Ports: - Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 1- Number of USB 2.0 ports: 4- Ethernet LAN (RJ-45) number of ports: 1- Number of DisplayPorts: 1- DisplayPort version: 1.2- Line input: Yes- Number of HDMI ports: 1- HDMI version: 2.1- Microphone input jack: YesInternal I/O: - USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2- USB 2.0, connectors: 1- ATX power connector (24 pin): Yes- EPS power connector (8-pin): Yes- Number of EPS power connectors (8 pins): 1- CPU fan connector: Yes- Number of CPU fan connectors: 1- Serial port header: 1- Front panel audio connector: Yes- Front panel connector: Yes- TPM connector: Yes- Number of SATA III connectors: 4- Number of chassis fan connectors: 2Connection: - LAN Controller: Realtek RTL8111H- Ethernet: Yes- Ethernet interface type: Gigabit EthernetExpansion slots: - Number of M.2 slots (M): 1- Larger key size of the first M.2: 2280- Highest generation of PCI Express from the first M.2: 3.0- PCI Express x1 (Gen 3.x) slots: 1- PCI Express x16 (Gen 4.x) slots: 1Package contents: - Batteries included: Yes- Included software: Norton® Internet Security (OEM version) LAN bandwidth management software- Screws included: YesBIOS: - ACPI version: 5.0- Types of BIOS: UEFI AMI- BIOS, memory size: 128 MB/s- System Management BIOS (SMBIOS) version: 2.7- Jumper Clear CMOS: Yes- Desktop Management Interface (DMI) version: 2.7Other features: - Weight: 770 gGraphics: - DirectX version: 12.0Features: - Feeding: ATX- Audio output channels: 7.1 channels- Sound chip: Realtek ALC897- Chipset: Intel H610- Component for: PC- Form factor: micro ATX- Chipset family: Intel- PC Health Monitoring: Fan, Temperature, Voltage, Water cooling- Supported Windows operating system: Windows 10, Windows 11Storage regulators: - Number of HDDs supported: 4- Supported storage disk interfaces: M.2, SATA III- Number of supported storage units: 5- Supported storage drive types: HDD & SSDBattery: - Number of battery cells: 1- Battery weight: 3 g- Weight of lithium per battery: 0.07 g- Battery technology: Lithium-Manganese Dioxide (LiMnO2)- Battery Type: CR2032. tradeinn Techinn

Supports Intel Core 14th/ 13th/ 12th processors Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs 5+1+1 Hybrid Digital VRM Design GbE LAN with Bandwidth Management NVMe PCIe 3.0 x4 M.2 High Quality Audio Capacitors and Audio Noise Guard Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP GIGABYTE APP Center, Simple and Easy Use
