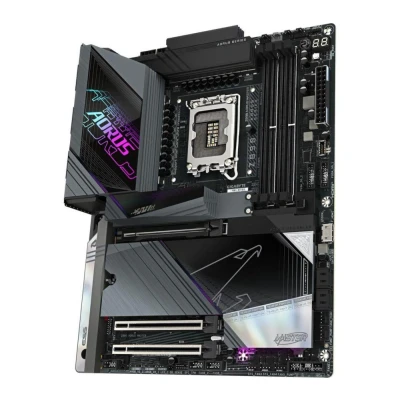

GIGABYTE Z890 AORUS MASTER Motherboard Supports Intel Core Ultra (Series 2) CPUs, 18+1+2 phases VRM, up to 9500MHz DDR5 (OC), 2xPCIe 5.0 + 3xPCIe 4.0, Wi Fi 7, 10GbE LAN, Thunderbolt 4

TechInn

Gigabyte Z890 Aorus Master G10 Motherboard. Dominate the game with the GIGABYTE Z890 AORUS MASTER G10. Engineered for Intel Core Ultra Series 2 processors, this motherboard boasts a massive 18+1+2+1 phase VRM for elite stability and overclocking. Harness next-gen speeds with a reinforced PCIe 5.0 slot, five M.2 slots with Thermal Guards, and DDR5 support up to 9500 MHz. Connectivity is king with Wi-Fi 7, 10GbE LAN, and Thunderbolt 4. With its advanced heatsink design and exclusive DDR Wind Blade cooling, the AORUS MASTER G10 is built for victory. Features:- Digital Phases 18+1+2+1 110A SPS VRM with Tantalum Polymer Capacitor- PCIe UD X PCIe 5.0 slot with PCIe EZ-Latch Plus design- PCIe M.2 design (up to 25110) with M.2 EZ-Latch Plus and Thermal Guard- Fully covered MOSFET heatsinks with heat pipe click design/M.2 EZ-Latch- Intel 2x2 Wi-Fi 7 BE200 with EZ-Plug WIFI design- 10GbE LAN, THUNDERBOLT 4 Type-C, USB 3.2 Gen2x2 Type-C- AORUS Exclusive DDR Cooling Kit - DDR Wind BladeSpecifications:Processor:- Processor manufacturer: Intel- Processor socket: LGA 1851 (Socket V1)- Supported processor: Intel Core Ultra (Series 2)- Supported processor sockets: LGA 1851- Maximum internal memory supported by the processor: 256 GBMemory:- Supported memory types: DDR5-SDRAM- Number of memory slots: 4- Type of memory slots: DIMM- Memory Channels: Double channel- ECC compatibility: Non-ECC- Supported memory clock speeds: 5600,5800,6000,6200,6400,6600,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,9500 MHz- Maximum supported memory clock speed: 9500 MHz- Maximum internal memory: 256 GB- Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GBStorage regulators:- Supported storage drive types: HDD & SSD- Supported storage disk interfaces: M.2, SATA III- Number of HDDs supported: 9- Number of supported storage units: 4- RAID Support: Yes- RAID Levels: 0, 1, 5, 10Graphics:- DirectX version: 12.0Internal I/O:- USB 2.0, connectors: 2- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2- USB 3.2 Gen 2x2 connectors: 1- Number of SATA III connectors: 4- Total number of SATA connectors: 4- ATX power connector (24 pin): Yes- EPS power connector (8-pin): Yes- TPM connector: Yes- 12V electrical connector: Yes- Connector for RGB LED strips: YesRear Panel I/O Ports:- Number of USB 2.0 ports: 2- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 6- Ethernet LAN (RJ-45) ports number: 1- Number of HDMI ports: 1- Number of DisplayPorts: 2- Microphone, input jack: Yes- S/PDIF output port: Yes- Number of Thunderbolt ports: 2Connection:- Ethernet: Yes- Ethernet interface type: 10 Gigabit Ethernet- Wifi: Yes- Wi-Fi standard: Wi-Fi 7 (802.11be)- Wi-Fi standards: Wi-Fi 7 (802.11be)- WLAN Controller Model: Intel Wi-Fi 7 BE200- Bluetooth: Yes- Bluetooth version: 5.4Characteristics:- Chipset: Intel Z890- Audio output channels: 5.1 channels- PC Health Monitoring: Fan, Temperature, Voltage- Component for: PC- Form factor: ATX- Chipset Family: Intel- Supported Windows operating system: Windows 11 x64Expansion slots:- Number of M.2 slots (M): 5BIOS:- Types of BIOS: UEFI AMI- BIOS, memory size: 256 MB/s- ACPI Version: 5.0- Jumper Clear CMOS: Yes- CMOS clear button: Yes- Desktop Management Interface (DMI) version: 2.7- System Management BIOS (SMBIOS) version: 2.7Battery:- Battery weight: 3 g- Lithium weight per battery: 0.07 g- Number of battery cells: 1- Battery technology: Lithium-Manganese Dioxide (LiMnO2)- Battery Type: CR2032Weight and dimensions:- Broad: 305 mm- Depth: 244 mm- Height: 35 mmPackage contents:- Batteries included: Yes- Included software: Norton® Internet Security (OEM version) LAN bandwidth management softwareOther features:- Weight: 2.19 kg. tradeinn Techinn

Currys

If you want to build a proper machine, you need a solid base. This Aorus Master Z890 motherboard is ready for Intel® Core™ Ultra processors. You can plug in up to 256 GB of DDR5 RAM and blaze through your workflows. With PCIe 5.0 and PCIe 4.0  slots you can have high-speed storage that won't make you wait around. Good to know - WiFi 7 gives you incredibly fast wireless internet, and there's 10 Gigabit Ethernet, too - Advanced Thermal Armor & M.2 Thermal Guard XL keep your system cool under heavy loads - To make building a PC easier, it's got user-friendly EZ-latches for some of the components - Connect loads of LEDs to create unique custom lighting controlled by Gigabyte RGB Fusion

Amazon

Digital 18+1+2+1 Phases 110A SPS VRM with Tantalum Polymer Capacitor Reinforced PCIe UD Slot X PCIe 5.0 with PCIe EZ-Latch Plus Design PCIe M.2 design (Up to 25110) with M.2 EZ-Latch Plus & Thermal Guard Fully Covered MOSFET Heatsinks with heatpipe/M.2 EZ-Latch Click Design Intel 2x2 Wi-Fi 7 BE200 with WIFI EZ-Plug Design 10GbE LAN, THUNDERBOLT 4 Type-C, USB 3.2 Gen2x2 Type-C AORUS Exclusive DDR Cooling kit: DDR Wind Blade
