Grade 8 Master Link Ring 14MM Single (G80 3.2T Lifting Chain Slings Component)

ManoMano

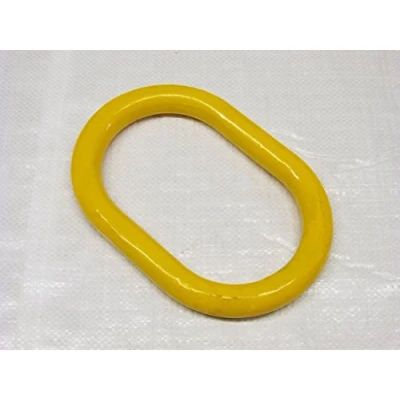

General description This Grade 8 Master Link Ring is a high-quality component designed for use in lifting chain slings. It serves as the main connecting point on a chain sling, ensuring secure and reliable lifting operations. This product is suitable for various chain sizes, specifically designed for single leg chain slings. Technical specifications Material: Grade 80 (G80) Finish: Yellow (may vary) Factor of Safety: 4:1 Conforms to: BS EN 1677 Available Product Codes and Specifications: SFYASML11: SWL 1.5 tonne, A 98.5 mm, B 58.5 mm, C 12 mm SFYASML14: SWL 3.2 tonne, A 119 mm, B 69 mm, C 15.5 mm SFYASML17: SWL 4 tonne, A 137 mm, B 78 mm, C 17 mm SFYASML22: SWL 8 tonne, A 159 mm, B 93 mm, C 23.5 mm SFYASML22A: SWL 8 tonne, A 140.5 mm, B 275 mm, C 24 mm SFYASML25: SWL 11.5 tonne, A 180 mm, B 108.5 mm, C 26 mm SFYASML30: SWL 17 tonne, A 203 mm, B 118 mm, C 32 mm SFYASML32: SWL 17 tonne, A 270 mm, B 136 mm, C 34 mm Usage This Master Link Ring is primarily used in the lifting gear

Amazon

Grade - 80 Size - 14MM SWL - 3.2 Ton A=119MM B=69MM C=15.5MM, Manufacturer: SecureFix Direct
