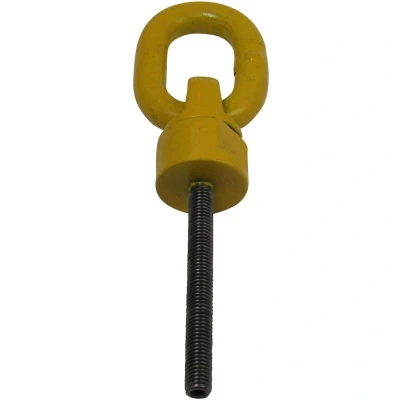

Grade 80 High Tensile Eye Bolts 8MM 36MM (Swivel Chain Link Lifting Rotating M8 M36) (8MM / M8)

General description Lifting Swivel Eye Bolts are essential tools for general lifting applications, particularly in the lifting industry. These eyebolts are designed with a chain link for attaching a lifting chain and are manufactured from Grade 80 material, ensuring strength and durability. Technical specifications Size: 8MM Safe Working Load @ 0 Degrees: 0.6 Ton Safe Working Load @ 90 Degrees: 0.3 Ton Thread Length: 43MM Chain Link Width: 30MM Chain Link Length: 55MM Size: 10MM - Safe Working Load @ 0 Degrees: 1 Ton, Safe Working Load @ 90 Degrees: 0.5 Ton, Thread Length: 90MM Size: 12MM - Safe Working Load @ 0 Degrees: 1 Ton, Safe Working Load @ 90 Degrees: 0.5 Ton, Thread Length: 110MM Size: 16MM - Safe Working Load @ 0 Degrees: 2.24 Ton, Safe Working Load @ 90 Degrees: 1.12 Ton, Thread Length: 120MM Size: 20MM - Safe Working Load @ 0 Degrees: 4 Ton, Safe Working Load @ 90 Degrees: 2 Ton, Thread Length: 120MM, Chain Link Width: 35MM, Chain Link Length: 70MM Size: 24MM - Safe
