Graphskill Pipe Saddle Clamp Anchor 34 mm ID, 32 IH, 25 x 3 Galvanised Steel Pack Size : 1

Name: Graphskill Pipe Saddle Clamp Anchor 34 mm ID, 32 IH, 25 x 3 Galvanised Steel Pack Size : 1
Brand: Graphskill
SKU: 6be4987b6f0d1040e084443b62b85e81

1/1

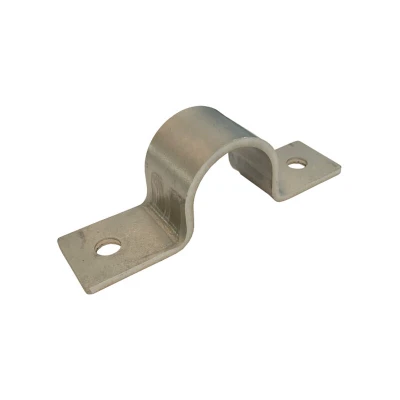

Image of Graphskill Pipe Saddle Clamp Anchor 34 mm ID, 32 IH, 25 x 3 Galvanised Steel Pack Size : 1

Amazon

Prices from

4.20

Description

ManoMano General description Pipe Saddle Clamp - Anchor designed for gripping pipes in all directions, ensuring secure installation and support. Technical specifications Inside Diameter (D): 34 mm Inside Height (C): 32 mm Hole Centers (A): 74 mm Material: Galvanised Steel (Grade 8.8) Pipe Nominal Bore: 25 mm Pipe OD: 33.7 mm Material Thickness (T): 3 mm Material Width (W): 25 mm Hole Center to Edge (B): 12 mm Hole Diameter (E): 8 mm Manufacturing Tolerances: +/- 1 mm Other information Galvanised finish provides enhanced protection suitable for outdoor applications. For installation, it is recommended to use tapped oversized nuts to accommodate the galvanised layer.

Compare webshops (2)

Sponsored links · Some shops pay us a fee

Sort by:

£ 4.20

£ 7.66

Description (2)

ManoMano

General description Pipe Saddle Clamp - Anchor designed for gripping pipes in all directions, ensuring secure installation and support. Technical specifications Inside Diameter (D): 34 mm Inside Height (C): 32 mm Hole Centers (A): 74 mm Material: Galvanised Steel (Grade 8.8) Pipe Nominal Bore: 25 mm Pipe OD: 33.7 mm Material Thickness (T): 3 mm Material Width (W): 25 mm Hole Center to Edge (B): 12 mm Hole Diameter (E): 8 mm Manufacturing Tolerances: +/- 1 mm Other information Galvanised finish provides enhanced protection suitable for outdoor applications. For installation, it is recommended to use tapped oversized nuts to accommodate the galvanised layer.

Amazon

Galvanised Steel Anchor clamp for pipes and tubes Please check all measurements in description below
