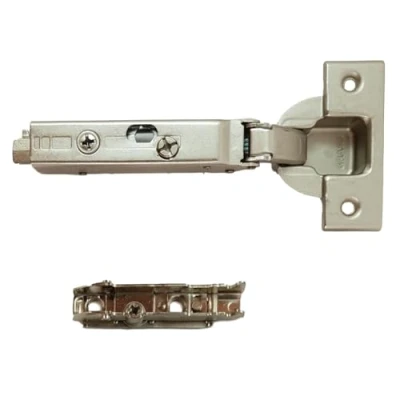

Grass Tiomos 110 furniture Hinge with damping (3 hole patterns to choose from). Pot (Drilling Distance 48 mm, 6067 S).

To replace an existing hinge, please measure the distance between the holes (see photo) and choose the right hinge. There are 3 versions of drilling distance: 42 mm (6065 G), 45 mm (6064 B) and 48 mm (6067 S). The hinge system has 4 adjustment options: Cushion adjustment, depth adjustment, height adjustment and an adjustable shock absorber integrated into the hinge arm. Height adjustment: ±2 mm, side adjustment: ±2 mm, depth adjustment: +3/-2 mm. Click-on: tool-free installation of the door on the body. 110° opening angle. Corner stop (overlay). Contents of delivery: 1 x damping hinge. Made by Grass in Germany, high brand quality from Umaxo., Manufacturer: GRASS
