GROHE Rapid Sl 3 In 1 Set for Wc, 1.13 M Installation Height Chrome 38772001

ManoMano

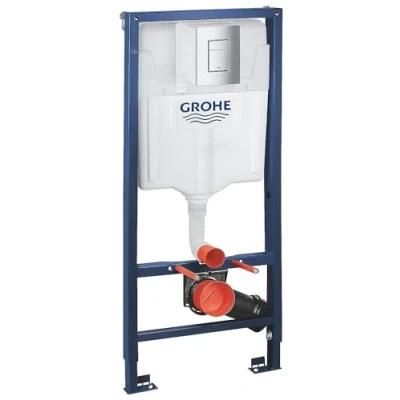

GENERAL DESCRIPTION The GROHE Rapid SL Support Frame is designed for wall-hung toilets, featuring a robust epoxy-coated steel frame suitable for mounting on load-bearing walls or in double walls with reinforced frameworks. It includes all necessary mounting hardware and is TÜV approved. TECHNICAL SPECIFICATIONS Height: 1.13m Epoxy-coated steel frame Wall mounting on load-bearing wall or in double wall Supplied with mounting hardware TÜV approved Fixing spacing: 180/230 mm PP flow Ø 90 mm Adjustable depth and height: 200 mm Reducer connection: DN 90/110 Reservoir capacity: 6 - 9 L Factory setting: 3 and 6 L Pneumatic release mechanism for dual flush Side or rear supply Insulated condensation tank Water supply with angle valve and flexible connection Tool-free installation of the template COMPATIBILITY AND ACCESSORIES Includes Grohe Skate Cosmopolitan Flush Plate (Chrome) and Grohe Rapid SL Front Wall Brackets. INSTALLATION Installation can be done horizontally or vertically without

Amazon

Including wall plate Skate Air and wall brackets for on-the-wall installation Highly flexible - 200 mm height adjustment Tool-free latching of inspection shaft, frame for actuation plate is mounted with two screws only, for vertical or horizontal use 4 modes of operation: dual flush (6/3l)or or non-interruptible single flush (6l) GROHE Whisper „Whisper-quiet“ flow noise for added comfort., Weight: 2.20462262 Pounds, Manufacturer: Grohe
