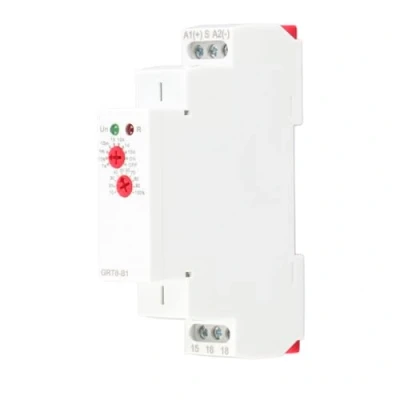

GRT8 B1Mini Power Off delay time Relay, AC/DC 12V 240V 35mm/0.11in DIN Rail Type Relay 120vac

Flexible Delay Control: This DC small time relay has an ultra-wide delay range of 0.1 seconds to 10 days, meeting the delay requirements of different scenarios. Accurate Setting: The knob setting method is adopted, which is easy to operate and the setting accuracy is up to 10%, ensuring the accuracy of time control and meeting the high-precision requirements of industrial control occasions. Clear Status Indication: Equipped wIth a green LED power indicator and a red LED output relay indicator, it clearly displays the operating status of the equipment, which is convenient for users to monitor and maintain in real time. High-performance Output: The output contact is 1 x SPDT, 16A/AC1, 250VAC/24VDC, and the minimum switching power is only 500mW, which meets the control needs of a variety of electrical equipment and is stable. Strong Durability: It has a mechanical life of 10,000,000 times, a maximum reset time of 200ms, a wide operating temperature range (-20℃~55℃), can be installed on a 35mm DIN rail, and ensures long-term stable work.
