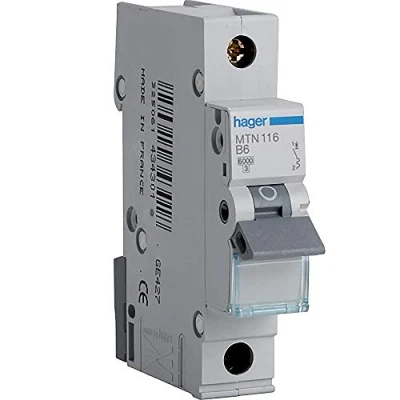

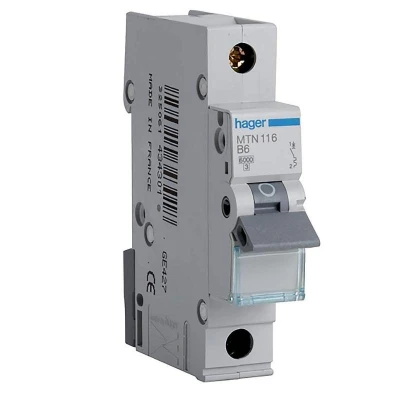

Hager MTN116 Miniature Circuit Breaker, 1 Pole, Module, Type B, 6 kA Breaking Capacity, 16 A Current

The Underfloor Heating Store

Discover the Hager Single Pole 16 A 6 KA B Curve Miniature Circuit Breaker MTN116, meticulously designed for optimal safety and efficiency in electrical systems. Suitable for residential, commercial, and light industrial applications, this product offers reliable protection and superior performance. Number of Poles: 1, Type of Pole: 1, Fixing Mode: DIN rail type O (symmetrical), Curve Type: B. Main Electrical Features: Rated Operational Voltage (Ue): 230 / 400 V, Frequency: 50/60 Hz, Type of Supply Voltage: AC, Rated Insulation Voltage: 500 V, Rated Impulse Withstand Voltage: 4000 V. Electric Current: Rated Service Breaking Capacity (Ics AC according to IEC 60898-1): 6 kA, Rated Short Circuit Breaking Capacity (Icn under 230V AC according to IEC 60898-1): 6 kA, Rating Current at 30°C: 16 A. Dimensions: Depth of Installed Product: 70 mm, Height of Installed Product: 83 mm, Width of Installed Product: 17.5 mm. Power: Total Power Loss Under IN: 2.44.

National Shower Spares

Hager 1P 6kA B 16A 1M B Type MCB (MTN116) The type B breakers mean they will trip between 3 and 5 time full load current which is suitable for most domestic installations complies with BS EN 60-898 Genuine brand new NSS product, covered by a NSS manufacturer's guarantee.

City Plumbing

Hager 16 A single-pole Type B, 6 kA miniature circuit breaker. It is part of the new MTN range of Hager miniature circuit breakers.

Amazon

Complies with BS EN 60898 Type B Breaking capacity: 6kA Single Pole
