HALJIA 5PCS 16 Bit I2C ADS1115 Module ADC 4 Channels with Programmable Gain Amplifier Analog Digital Converter Development Board

Name: HALJIA 5PCS 16 Bit I2C ADS1115 Module ADC 4 Channels with Programmable Gain Amplifier Analog Digital Converter Development Board
Brand: HALJIA
SKU: fe38b1bbf7863f6aa184940e8c8d347c

1/1

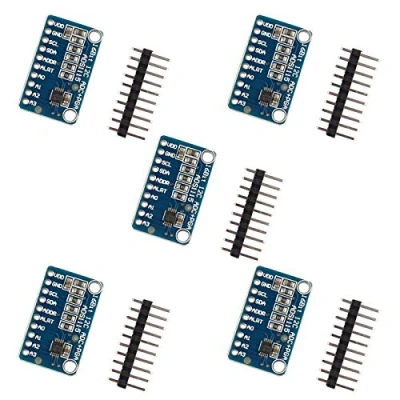

Image of HALJIA 5PCS 16 Bit I2C ADS1115 Module ADC 4 Channels with Programmable Gain Amplifier Analog Digital Converter Development Board

Amazon Marketplace

Prices from

16.99

Featured

	£ 16.99	To Shop
	£ 16.99	To Shop
COMPARE ALL WEBSHOPS (2)

Description

Amazon ADC bit rate: 16 bit, interface type: I2C, channels: 4 channels (AN0 AN1 AN2 AN3) or 2 differential inputs. Input voltage: 2 ~ 5.5 V, channel input voltage: 0-VDD, continuous mode: only 150μ, single shot mode: automatically turns off, programmable data rate: 8 sps - 860 sps. Programmed input range control, 7 types of input ranges: - 0.256 V ~ + 0.256 V, - 0.512 V ~ + 0.512 V, - 1.024 V ~ + 1.024 V, - 2.048 V ~ + 2.048 V, - 4.096 V ~ + 4.096 V, - 6.144 V ~ + 6.144 V. I2C 7-bit addresses between 0x48 - 0x4B. Applications: portable instrumentation, consumer goods, battery monitoring, temperature measurement, factory automation and process control.

Compare webshops (2)

Shop

Price

£ 16.99

To Shop

£ 16.99

To Shop

Description (1)

ADC bit rate: 16 bit, interface type: I2C, channels: 4 channels (AN0 AN1 AN2 AN3) or 2 differential inputs. Input voltage: 2 ~ 5.5 V, channel input voltage: 0-VDD, continuous mode: only 150μ, single shot mode: automatically turns off, programmable data rate: 8 sps - 860 sps. Programmed input range control, 7 types of input ranges: - 0.256 V ~ + 0.256 V, - 0.512 V ~ + 0.512 V, - 1.024 V ~ + 1.024 V, - 2.048 V ~ + 2.048 V, - 4.096 V ~ + 4.096 V, - 6.144 V ~ + 6.144 V. I2C 7-bit addresses between 0x48 - 0x4B. Applications: portable instrumentation, consumer goods, battery monitoring, temperature measurement, factory automation and process control.
