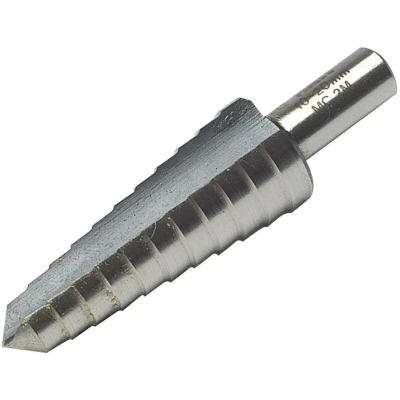

Halls MC 3M High Speed Steel Step Drill 20 30mm HLLMC3M

General description This high-speed steel step drill allows you to easily create holes of specific sizes in sheet metal. It features multiple parallel-cutting steps, making it simple to achieve the desired diameter. The Halls MC High-Speed Steel Step Drill provides an easy way to cut the hole size you want, suitable for use on sheet metal up to a maximum thickness of 4mm. Technical specifications Size range: 20mm to 30mm in 1mm increments Number of steps: 11 Maximum material thickness: 4mm Shank size: 13mm Compatibility and accessories Designed for use on sheet metal Use with coolant when drilling metals Installation Insert the shank into a compatible drill chuck (13mm) Ensure the drill is set to appropriate speed for metal drilling Usage Mark the desired hole size on the material Use the step drill to gradually drill through the sheet metal, applying steady pressure Use coolant to prevent overheating and prolong tool life Other information

The Halls MC High-Speed Steel Step Drill provides an easy way to cut the hole size you want. Each tool cuts parallel hole sizes. For use on sheet metal to stated maximum thickness.Size range.20 21 22 23 24 25 26 27 28 29 30mm.Maximum Material Thickness. 4mm.Shank to fit size. 13mm. When drilling metals use a coolant.PTDHLLMC3M
