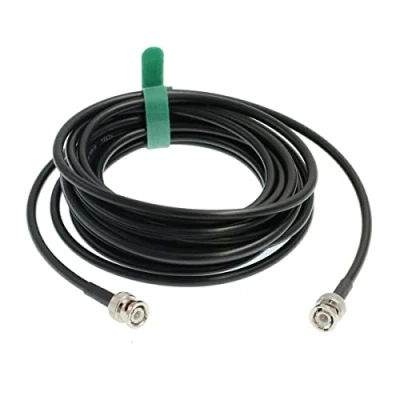

HangTon BNC Male to 6G SDI Cable RG223 RF Coax 50 Ohm Double Shielding Low Signal Loss for GPS LAN/WAN Data Video (10m)

Male BNC to male BNC, both connectors are 50 Ohm impedance. It is a OD 5.3mm RG223 50 ohm 6G RF coaxial cable, low-loss, for high frequency signal transmission. The highest working frequency is 12.4ghz Conductor: Silver Covered Copper, Insulation: Solid Low Density Polyethylene (PE), Shield: 2 Silver-Covered Copper Braided Conductors(protect against EMI/ RFI interference). Jacket: Black PVC. The cable temperature rating is 75C, offers better shielding and lower signal loss than RG58 and RG174. RG223 coaxial cable is commonly found in interconnects, phasing harnesses, cable sets, test cables, radio systems, data transmission, broadcast, and computer applications. RG223 cable can be used in CATV-community antenna television, CCTV-closed-circuit television and DBS-direct broadcasting satellite. It is also appropriate for LAN/WAN or GPS applications which require low signal loss and high shielding performance. RG 223 cable is rated for direct burial applications.
