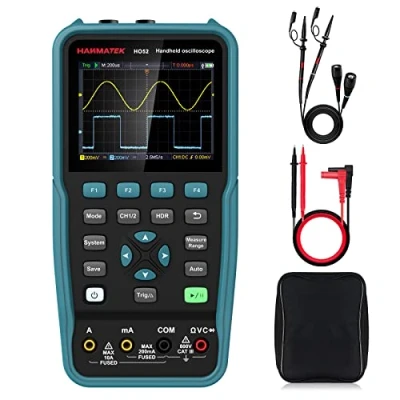

HANMATEK Handheld Digital Oscilloscope 50Mhz Bandwidth with 2 Channels HO52 3.5"TFT Mini Oscilloscope, in 1 and Multimeter, Backlit Screen, Auto Calibration Function, Memory Function

Scope Mode: 1. The waveform refresh rate is up to 10000wfms / s. 2. Dual channel input, bandwidth up to 50MHZ, real-time sampling rate 250MSa / s, recording length up to 8k dots. 3. Cursor measurement function. 4.7 kinds of automatic measurement functions. 5. XY function. 6. One key automatic setting function, convenient for detecting and debugging. Meter mode: 4 1/2 digits of the true effective value. 1. Standard voltage, current, resistance, diode, continuity, capacitance test. 2. Auto range function, convenient for testing and debugging. 3. The maximum input voltage is AC 750V, DC 1000V. 4. Independent multimeter and oscilloscope input. 5. Reading the wait function. 6. Relative measurement function. USB Type-C interface supports not only power bank power supply, but also adapter charging and top computer connection. After connecting to the computer, the computer can recognize the oscilloscope as a USB flash drive and read saved images or CSV waveforms, which is useful for later viewing and analyzing waveforms or for sharing waveform data. Save function: can save 4 groups of settings, 4 groups of reference waveforms, 4 images, 4 groups of waveforms in CSV format. The reference waveform can be displayed on the same screen as the measured waveform for convenient comparison of the waveform. Self-calibration function. Up to 6 automatic measurements can be displayed simultaneously on the screen. 1 * HO52 Digital Oscilloscope, 1 * carrying bag, 1 * oscilloscope probe, 1 * adapter, 1 * USB cable, 1 * multimeter pen, 1 * instructions, 1 * CD, 1 * calibration pen
