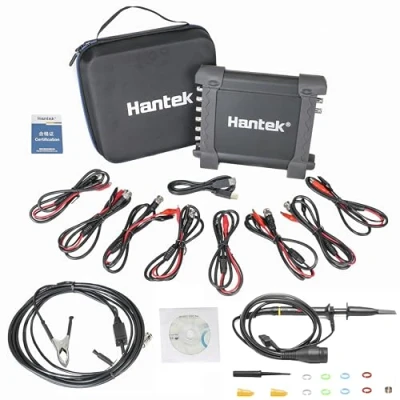

Hantek 1008C PC USB 8CH Automotive Diagnostic Digital Oscilloscope/DAQ/Programmable Generator

Parameters: 8 CH Oscilloscope, 2.4 MSa/s, 12-bit, 8CH programmable signal generator, Input Impedance : Resistance: 1MΩ; 10mV/div to 5V/div Input Sensitivity; 4K Memory Depth; 1ns/div to 20000s/div Time Base Range Diagnostic Function: Over 80 types of automotive diagnostic function ( Ignition/Sensor/Bus detection/Performe/Starter and charging circuits etc.) ; Quickly identify vehicle faults to reduce diagnostic time, suitable for all types of automotive inspections Oscilloscope Functions: Supported to record waveform for a long time. It can simulate camshaft and crankshaft signal; The diagnostic result can be generated diagnostic report., printed or taken screenshot by pushing one key, many methods to save the data Install the PC software and start to use without any other drivers. Support WIN XP/7/8/10/11; Transmit signals through USB 2.0 interface plug and play, and no need extra power supply; The diagnosis result can be saved as the format of txt, csv, rfc, xls, doc, jpg and etc. It is convenient to be checked and compared later
