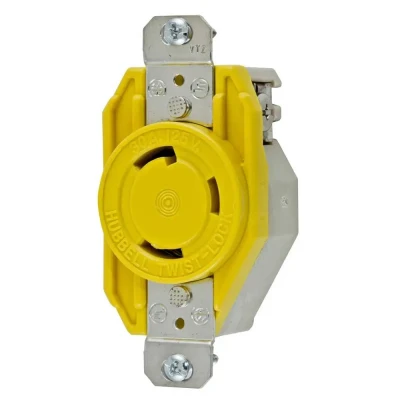

HBL26CM10 KELLEMS Electrical Products Plug/Receptacle

Hubbell Twist-lock Receptacle 30a 125v. Locking Devices, Twist-Lock®, Marine Grade, Corrosion Resistant Single Flush Receptacle, 30A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-30R, Screw Terminal, Nylon face.Features:- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection.- Face color coding by voltage facilitates locating and mating of proper devices.- Nickel plated brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems.Specifications:General:- Application:Marine Wiring Devices.- Environmental Conditions:Corrosion Resistant.- Horsepower:Maximum 2.- Item Type:Single Flush Receptacles.- Material:Nylon.- Material:Mounting Hardware Screw Mounting.- Number Of Poles:2-Pole.- Operating Temperature:Maximum continuous 75°C and minimum -40°C without Impact.Performance:- Electrical:Current Interrupting.- Certified for current interrupting at full rated current.- Electrical:Dielectric Voltage.- Withstands 2,000V minimum.- Environmental:Flammability.- V2 or better per UL94/CSA 22.2 No.0.17.- Environmental:Moisture Resistance.- IP20 Suitability.- Environmental:Operating Temperatures.- Maximum Continuous 75°C Minimum -40°C (w/o impact).- Mechanical:Terminal Accommodation.- 16 AWG.- 8 AWG stranded copper wire only.- Mechanical:Terminal Identification.- Terminals identified in accordance with UL 498 Dimensions:- Dimensions:3.28 in x 1.70 in x 1.31 in.- Height:1.31 in.- Length:3.28 in.- Weight:0.30 lb.- Width:1.70 in Electrical Ratings:- Amperage Rating:30 A.- Connectivity:Back and Side Wired Screw Terminals.- Current / Amperage Rating:30 A.- Current Rating:30 A.- Dielectric Strength:Withstands 2,000V minimum.- Phase:Single Phase.- Voltage Rating:125 VAC.- Voltage Rating Description:125 VAC.- Wattage:3750 W. tradeinn Waveinn

LOCKING SGL RCPT NEMA L5-30R ROHS COMPLIANT: YES
