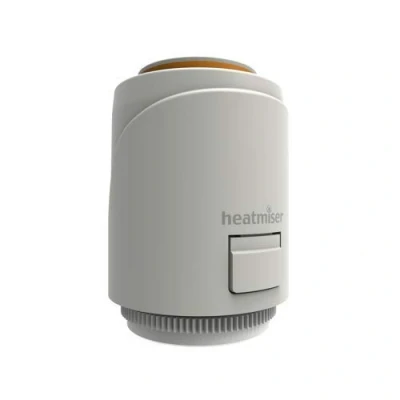

Heatmiser 2 Wire Thermal Actuator

The Heatmiser TA230 is a reliable and efficient 2-wire thermal actuator designed for underfloor heating systems, enabling precise control of individual valves on a manifold. This advanced actuator works in conjunction with a room thermostat to open the valves, allowing for tailored heating in each room or zone.

Seamless Integration

This thermal actuator is ideally suited for integration into your underfloor heating system, typically wired to a wiring centre such as the Heatmiser UH4 or UH8. With its design aimed at central control and synchronization, the TA230 ensures optimal performance across multiple thermal actuators, enhancing energy efficiency and comfort throughout your home.

Convenient Installation

The Heatmiser TA230 thermal actuator comes with a threaded ring nut (M30 x 1.5) for easy installation. Before fitting the actuator, this nut is securely attached to the manifold, providing a robust base. Once the nut is in place, the actuator can be effortlessly clipped on, streamlining the installation process and significantly reducing installation time.

Reliable Operation

Operating on a 230V power supply, the Heatmiser thermal actuator guarantees consistent and dependable performance. It features a 2-wire normally closed configuration that effectively manages the flow of heating water, ensuring accurate temperature regulation in each room or zone. The actuator's stroke length measures 3.5mm ± 0.5mm, providing precise movement for opening and closing valves, allowing for smooth and responsive operation.

Specifications

- Power: 230VAC

- Consumption: 2W

- IP Protection: IP54

- Stroke: 3.5mm ± 0.5mm

- Valve Connection: Threaded Ring Nut M30 x 1.5

- Opening Time: Start: 120 seconds / Finish: 180 seconds

- Weight: 127g

Customized Control

The Heatmiser TA230 thermal actuator allows for customized temperature control in various zones of your home, making it a valuable addition to any underfloor heating system. Its robust construction ensures longevity and durability, while its compatibility with numerous underfloor heating wiring centres provides flexibility for installation and use.

Choose the Heatmiser thermal actuator TA230 for an efficient, reliable, and customizable heating solution that enhances the comfort of your living spaces. With its user-friendly features and dependable performance, this thermal actuator stands out as a top choice for home heating control.
