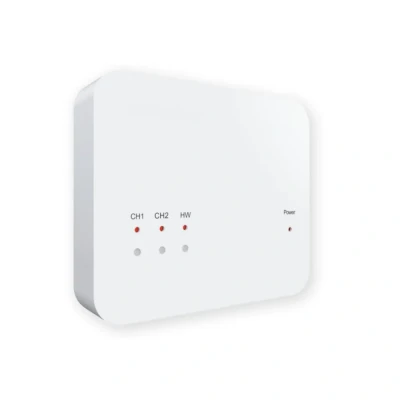

Heatmiser RF Switch Wireless Receiver

Zoro Tools

The Heatmiser RF-SWITCH offers wireless control for heating and hot water zones, featuring: Two-Channel Control: Manage two heating zones and one hot water zone independently. Volt-Free Output: Provides a reliable volt-free output for boiler control. Wireless Link to Boiler: Pair with UH8-RF for wireless boiler connection, simplifying installation. Specifications: Compatibility: UH8-RF/UH8-RF V2, NeoAir & Slimline-RF Compatible Boost Compatible: Yes No. of Heating Zones: 2 No. of Hot Water Zones: 1 Boiler Output: 1 Mounting Type: Surface Relay Load Max: 3A Resistive Total Load Max: 9A Resistive Supply: 230v AC Dimensions (L, H, D) : 108x90x24mm Installation: Loosen the screw at the RF-SWITCH base and separate the front panel from the back plate. Fix the back plate onto the wall using provided screws. Terminate cables as per the wiring diagram. Mount the front panel onto the back plate and tighten the retaining screw. Switch on the power supply; the power LED will illuminate.

The Underfloor Heating Store

The Heatmiser RF-SWITCH Wireless Receiver is a versatile surface-mount device designed for controlling heating and hot water zones. With its two-channel capability, it efficiently manages two heating zones and one hot water zone, enabling precise and independent temperature management. The receiver provides a volt-free output specifically designed for boiler control, ensuring compatibility and reliable operation. Pair the RF-SWITCH with the UH8-RF to establish a wireless link to the boiler, simplifying installation and reducing wiring requirements.

Amazon

Heatmiser RF-Switch DIY and Tools Electrical Switches and Dimmers Brand Heatmiser, Manufacturer: Heatmiser
