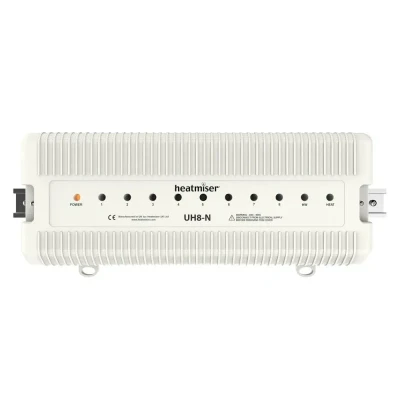

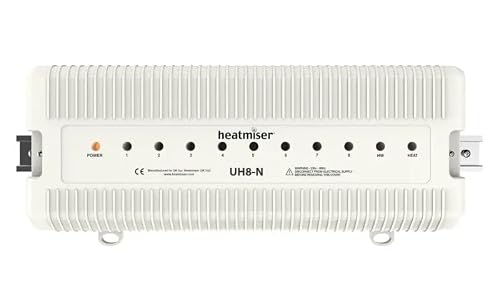

Heatmiser UH8 N Wiring Centre 12V 8 Zone

Amazon

Eight Zone Control: The UH8-N allows you to control up to eight zones, giving you the flexibility to regulate the temperature in different areas of your space individually. Hot Water Cylinder Output: In addition to the zone control, the wiring centre provides an output for a hot water cylinder, allowing you to integrate hot water management into your heating system. On-Demand Switching: When any zone calls for heat, the UH8-N activates a 230V output to switch the relevant zone actuators, underfloor heating pump, and valve, ensuring precise temperature control and energy efficiency. Boiler Compatibility: The wiring centre features a volt-free connection for the boiler, making it compatible with almost all boiler models, enabling seamless communication between the heating system and the boiler. Actuator Support: Each zone can accommodate up to six actuators, providing comprehensive control over the underfloor heating system in each zone. Radiator Option: The UH8-N offers the option to configure Zone 8 as a radiator zone, allowing you to control a radiator separately. In this mode, the underfloor heating pump, valve, and boiler are not activated when there is a heat demand from Zone 8. DIN Rail Mounting: The UH8-N is designed for DIN Rail Mounting, ensuring easy and secure installation. Output Indication: LED indicators on the wiring centre provide clear status indications for each zone, boiler, pump, and valve, simplifying system testing and troubleshooting for installers., Manufacturer: Heatmiser

Zoro Tools

The Heatmiser UH8-N is a versatile wiring center designed to work seamlessly with 12V Network thermostats, offering efficient control for your heating system: Key Features: Eight Zone Control: Control up to eight zones individually for precise temperature regulation in different areas. Hot Water Cylinder Output: Integration of hot water management into the heating system with a dedicated output. On-Demand Switching: Activates relevant components when any zone calls for heat, ensuring energy-efficient operation. Boiler Compatibility: Compatible with most boiler models via volt-free connection, facilitating seamless communication. Actuator Support: Each zone supports up to six actuators, providing comprehensive control over the underfloor heating system. Radiator Option: Configure Zone 8 for separate radiator control, ensuring independent operation. DIN Rail Mounting: Secure and easy installation with DIN Rail Mounting. Output Indication: LED indicators offer clear status indications for each zone and system component, simplifying testing and troubleshooting. Specifications: Supply: 230v AC Relay Load Max: 3A Total Load: 5A IP Protection: IP20 Dimensions (L, H, D) mm: 384x148x60mm Number of Heating Zones: 8 Number of Hot Water Zones: 1 Weight: 850g Actuator Outputs: 240V Network Wiring to Thermostats: Low Voltage The Heatmiser UH8-N ensures efficient and reliable control of your underfloor heating system, with advanced features and robust design providing convenience and peace of mind.

The Underfloor Heating Store

The Heatmiser UH8-N Wiring Centre 12V - 8 Zone is a versatile wiring centre designed to work seamlessly with Heatmiser's 12V Network thermostats. It serves as a central switching unit and is ideally located next to the underfloor heating manifold, providing efficient control for your heating system. This wiring centre allows you to control up to eight heating zones individually, giving you the flexibility to regulate temperatures in different areas of your space. In addition to zone control, the wiring centre provides an output for a hot water cylinder, allowing you to integrate hot water management into your heating system. When any zone calls for heat, the UH8-N activates a 230V output to switch the relevant zone actuators, underfloor heating pump, and valve, ensuring precise temperature control and energy efficiency. The wiring centre features a volt-free connection for the boiler, making it compatible with various boiler models.
