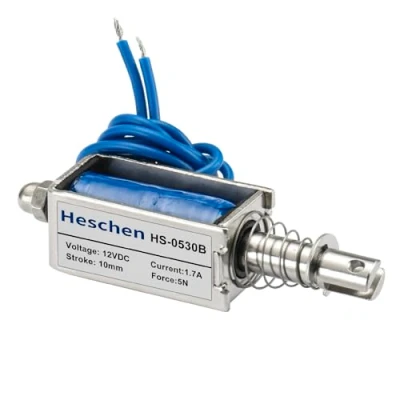

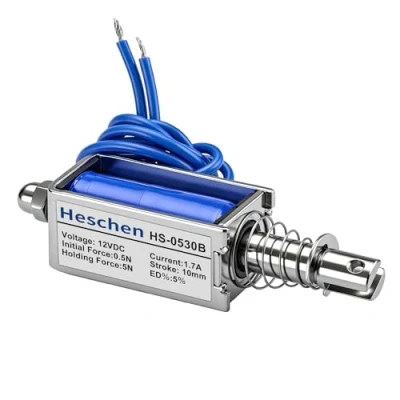

Hechen solenoid electromagnet HS 0530B DC12V 5N 10mm stroke push pull type open frame

Crucial Duty Cycle Alert: Rated for an ED=5% duty cycle. This electromagnet heats up rapidly and is strictly for short-term activation only. Do NOT leave it energized continuously, or the coil will instantly burn out. Power Supply Requirement: Operates at 1.7 Amps. You MUST use a robust DC 12V power supply that delivers greater than 1.7A (approx. 24W+). Using a low-power adapter will cause the solenoid to fail or operate sluggishly Stroke & Force Dynamics: Provides a 10mm linear motion stroke. Please note: The initial starting pull/push force is 0.5N. The maximum 5N keep force is ONLY achieved at the very end of the stroke when fully retracted Open Frame Construction: Built with a high-quality copper coil for stable electrical conductivity and an open-frame chassis, offering a simple, compact, and highly reliable linear motion mechanism Recommended Applications: Suitable as a mechanical release or switching component in smart vending machines, electronic locks, and arcade cabinets. Note: Not suitable for continuous holding applications like duct valves.
