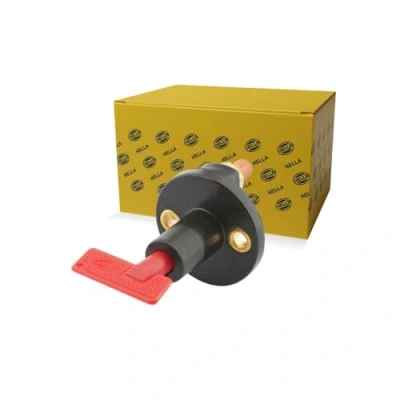

HELLA 6EK 002 843 001 Main Switch, battery S33 Turn knob control Number of connectors: 2 Bolted Normally Open Contact Thread Pitch: 1.5mm

Battery switch with red switch key - for battery and ignition current Optionally plus or minus line can be switched off, key can be removed in "Off" position 2 screw connections, contains 2 screw nuts per bolt Starting cross-sections of the supply lines at continuous current: 35 mm² at 100A, 70 mm² at 250A, 250 mm² at 500A. Replacement key: 9SL 706 729-031 Capacity at 12V: max 1000A/10 sek/12V DIN/ISO: 40050-IPX2
