HELLA 6EK 002 843 121 Main Switch, battery Turn knob control 24V Number of connectors: 2 Bolted Normally Open Contact Oval

Name: HELLA 6EK 002 843 121 Main Switch, battery Turn knob control 24V Number of connectors: 2 Bolted Normally Open Contact Oval
Brand: HELLA
SKU: 7dd53b5729f3d5fcdd3ee7fb20728bfe
Price: 68.51 GBP
Availability: InStock

1/1

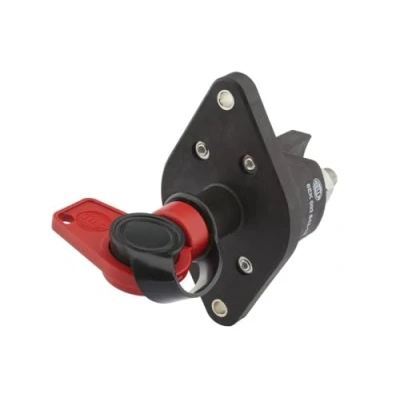

Image of HELLA 6EK 002 843 121 Main Switch, battery Turn knob control 24V Number of connectors: 2 Bolted Normally Open Contact Oval

Amazon

Prices from

68.51

Featured

	£ 68.51	To Shop
COMPARE ALL WEBSHOPS (1)

Description

Amazon For battery and ignition current, switching key red. Plastic housing and switch button Screw fixing. 2 screw connections M10 x 1.5. 2 switching positions: 0 = off, 1 = on Starting cross-sections of the supply lines at continuous current: 35 mm² at 100A, 70 mm² at 250A, 250 mm² at 500A. Replacement key: 9SL 706 729-031 Capacity at 24V: 1500A/4 min./2000A/1,5 min./2500A/10 sek. Prot.type (IP Code): IP65 - DIN/ISO: IEC 529

Compare webshops (1)

Sort by:

£ 68.51

Description (1)

For battery and ignition current, switching key red. Plastic housing and switch button Screw fixing. 2 screw connections M10 x 1.5. 2 switching positions: 0 = off, 1 = on Starting cross-sections of the supply lines at continuous current: 35 mm² at 100A, 70 mm² at 250A, 250 mm² at 500A. Replacement key: 9SL 706 729-031 Capacity at 24V: 1500A/4 min./2000A/1,5 min./2500A/10 sek. Prot.type (IP Code): IP65 - DIN/ISO: IEC 529
