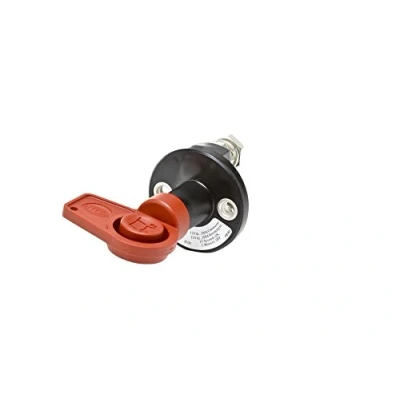

HELLA 6EK 002 843 171 Main Switch, battery

For battery - and ignition current, optional circuit for + / - line. Switching key can be removed in "off" position, current output interrupted. 2 screw terminals. 2 switching positions: 0 = off, 1 = on. Max. Load: 1000A at 12V (10 sec.), 500A at 24V (10 sec.). The continuous load capacity is max. 50A at max. 80° C ambient temperature and a 35 mm cable connected with ring tongues. Protection class DIN 40 050 - IPX2
