Heschen Brass Electric Solenoid Valve, 2W 250 25KJ, PT 1, AC220V, Direct Action Water Air, Normally Open

Name: Heschen Brass Electric Solenoid Valve, 2W 250 25KJ, PT 1, AC220V, Direct Action Water Air, Normally Open
Brand: Heschen
SKU: 8c94bf9f325fdd4b9f42c53ce9a2b3be
Price: 41.99 GBP
Availability: InStock

1/1

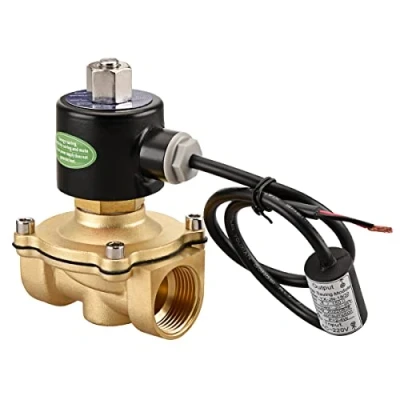

Image of Heschen Brass Electric Solenoid Valve, 2W 250 25KJ, PT 1, AC220V, Direct Action Water Air, Normally Open

Amazon

Prices from

41.99

Description

Amazon 【Normally Open Operation】 The valve remains open when de-energised and closes immediately when power is applied. Designed for systems requiring continuous water flow during power outages. 【Smart Power Management】 For optimal performance, a maximum single energised duration of 24 hours or less is recommended. If continuously powered for more than 24 hours, the coil will heat up and reach a maximum temperature of approximately 80°C. Always allow at least a 2-second interval between turning the power off and on again, as the coil requires time to demagnetise. 【Installation Guide】 To ensure safe operation and prevent leaks, the solenoid valve must be installed horizontally with the coil in a vertical, upright position. Do not install inverted or sideways. 【Technical Specifications】 Features a standard PT 1" joint pipe bore (approx. 32.4mm outer diameter). Operates efficiently within a working pressure of 0 to 5 kgf/cm², with a maximum pressure resistance of 10.5 kgf/cm². 【Versatile Applications】 A dependable direct drive solution for agricultural irrigation, smart watering setups, and industrial plumbing. We recommend installing a filter screen at the front end to prevent clogging.

Compare webshops (1)

Sponsored links · Some shops pay us a fee

Sort by:

£ 41.99

Description (1)

【Normally Open Operation】 The valve remains open when de-energised and closes immediately when power is applied. Designed for systems requiring continuous water flow during power outages. 【Smart Power Management】 For optimal performance, a maximum single energised duration of 24 hours or less is recommended. If continuously powered for more than 24 hours, the coil will heat up and reach a maximum temperature of approximately 80°C. Always allow at least a 2-second interval between turning the power off and on again, as the coil requires time to demagnetise. 【Installation Guide】 To ensure safe operation and prevent leaks, the solenoid valve must be installed horizontally with the coil in a vertical, upright position. Do not install inverted or sideways. 【Technical Specifications】 Features a standard PT 1" joint pipe bore (approx. 32.4mm outer diameter). Operates efficiently within a working pressure of 0 to 5 kgf/cm², with a maximum pressure resistance of 10.5 kgf/cm². 【Versatile Applications】 A dependable direct drive solution for agricultural irrigation, smart watering setups, and industrial plumbing. We recommend installing a filter screen at the front end to prevent clogging.
